Product Overview

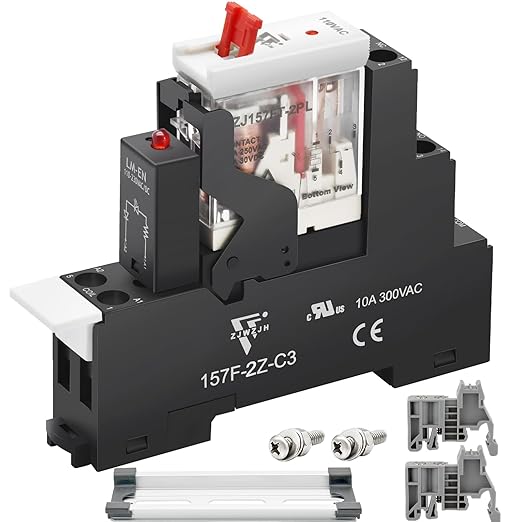

The ZJWZJH Power Relay Electromagnetic with Test Button 110V 120V AC 8Amp DPDT 2Pole 2NO 2NC Socket with Indicator LED Module is a Electromechanical Relays product. It features our miniature pcb power relay through ul certification and ce.
Key Features

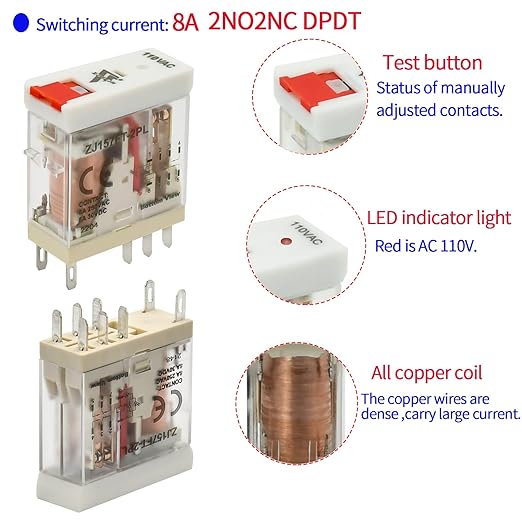

- Our Miniature PCB Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.

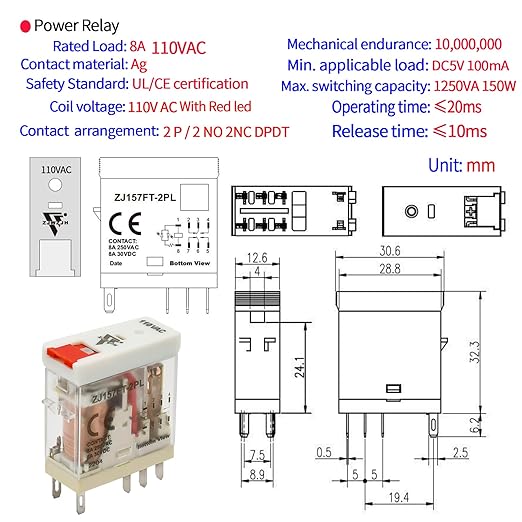

- Coil Voltage:110/120V AC, Coil Resistance: 1100Ω. Relay Name:ZJ157FT-2PL; Rated carry current:8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.Contact:2NO2NC DPDT 2 Poles.

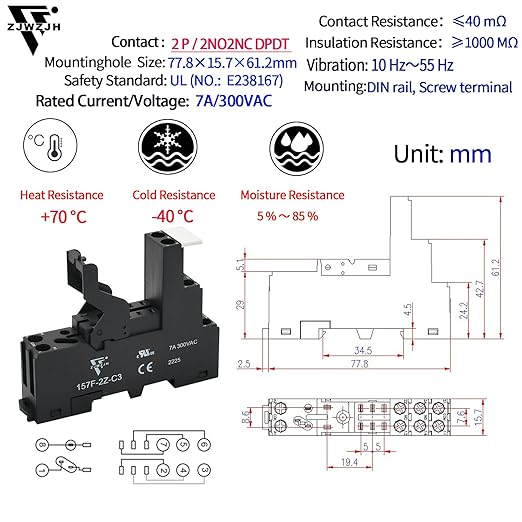

- Socket Safety Standard:UL (NO.: E238167) ;Socket Name :157F-2Z-C3; Outline Size: 77.8×15.7×61.2mm(3.06*0.62*2.41");Number of plug–in and draw–out ≥500 times .

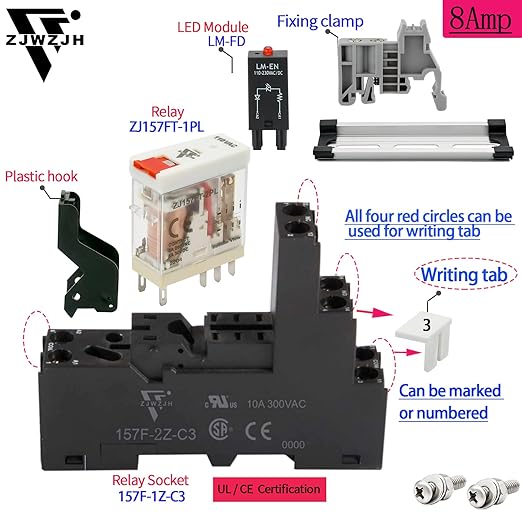

- Package Content : 1 x Power Relay ,1 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times

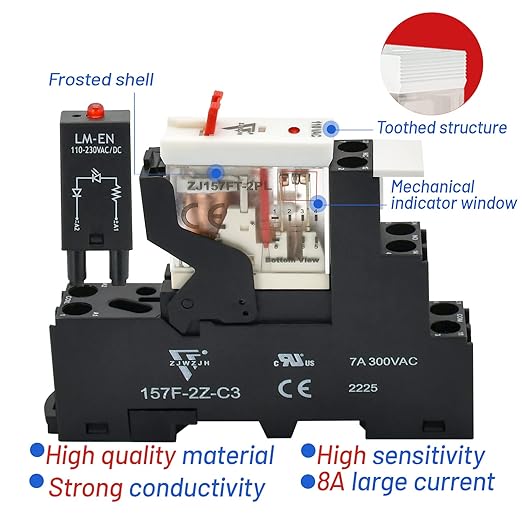

- The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,
Why Choose the ZJWZJH Power Relay Electromagnetic with Test Button 110V 120V AC 8Amp DPDT 2Pole 2NO 2NC Socket with Indicator LED Module
The ZJWZJH Power Relay Electromagnetic with Test Button 110V 120V AC 8Amp DPDT 2Pole 2NO 2NC Socket with Indicator LED Module offers our miniature pcb power relay through ul certification and coil voltage:110/120v ac, coil resistance: 1100ω. relay name:zj157ft-2pl;. These features make the ZJWZJH Power Relay Electromagnetic with Test Button 110V 120V AC 8Amp DPDT 2Pole 2NO 2NC Socket with Indicator LED Module a strong option in the Electromechanical Relays category.
Best For
The ZJWZJH Power Relay Electromagnetic with Test Button 110V 120V AC 8Amp DPDT 2Pole 2NO 2NC Socket with Indicator LED Module is best suited for everyday electromechanical relays needs.
Quick Summary
The ZJWZJH Power Relay Electromagnetic with Test Button 110V 120V AC 8Amp DPDT 2Pole 2NO 2NC Socket with Indicator LED Module is a Electromechanical Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Silver Alloy. Contact Type: 2no 2nc,dpdt. Current Rating: 8 Amps. Mounting Type: DIN Rail Mount. Price: $16.48.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Silver Alloy |
| Contact Type | 2no 2nc,dpdt |
| Current Rating | 8 Amps |
| Mounting Type | DIN Rail Mount |
