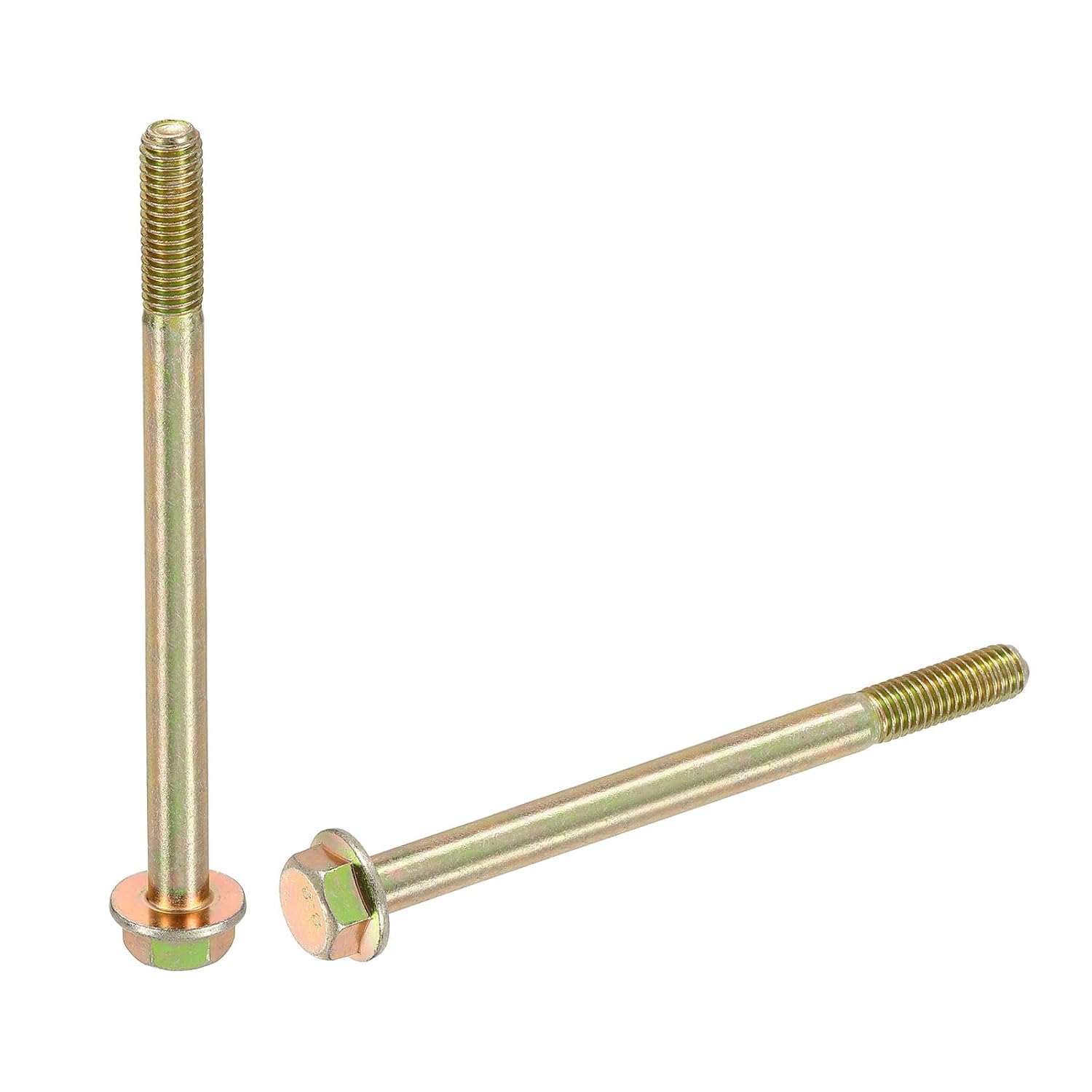

uxcell 5pcs M8-1.25 x 110mm Metric Flange Hex Cap Bolt Partial Thread DIN 6921 Flanged Bolts Hexagon Screws Carbon Steel Zinc Plated Colorful

Product Details

• Brand: uxcell
• Color: Brass
• Item Dimensions: 4.33 x 0.51 x 0.71 inches

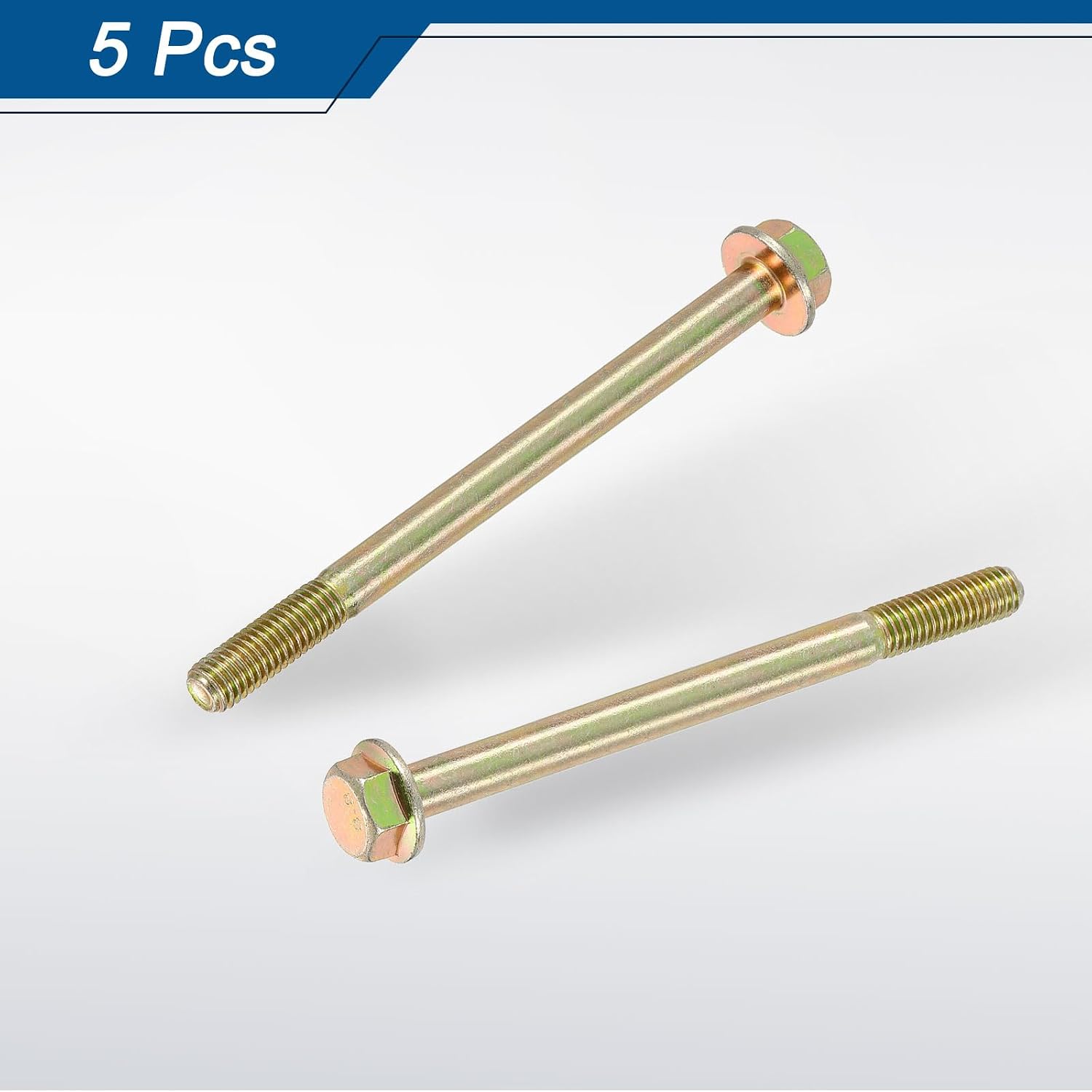

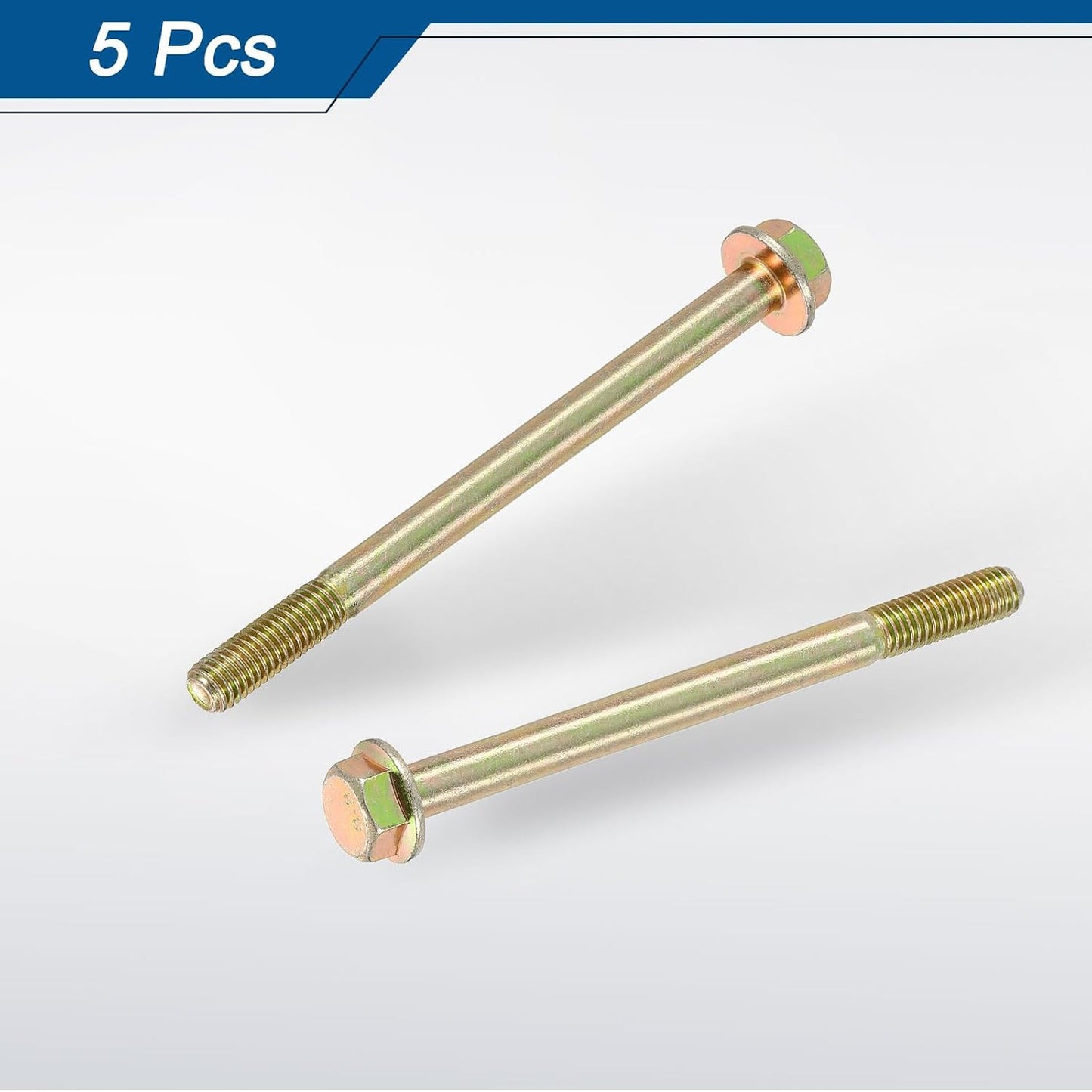

• Number of Items: 5
• Unit Count: 1 Count
• Manufacturer: uxcell
• Part Number: f25011100ux0029
• Thread Size: m8-1.25
• Exterior Finish: Zinc
• Manufacturer Grade: Grade 10.9
• Screw Head Style: Hex Flange
• Fastener Type: Flange Bolt
• Thread Type: Métrique
• Thread Style: Main droite
• Item Hardness: Grade 10.9
• Head Type: Hex
• Thread Class: 2A
• Set Screw Thread Type: Metric
• Material Type: Carbon Steel Zinc Plated
• Metal Type: Carbon Steel
• Finish Types: glossy
• Item Diameter: 8 millimeters
• Size Name: M8-1.25 x 110
• Number of Pieces: 5
• Fastener Size: M8-1.25 x 110
• Thread Coverage: Partiellement fileté
• Outside Diameter: 13 millimeters
• Set Name: uxcell 5-Piece M8 Flanged Hex Cap Bolt Set

About this item

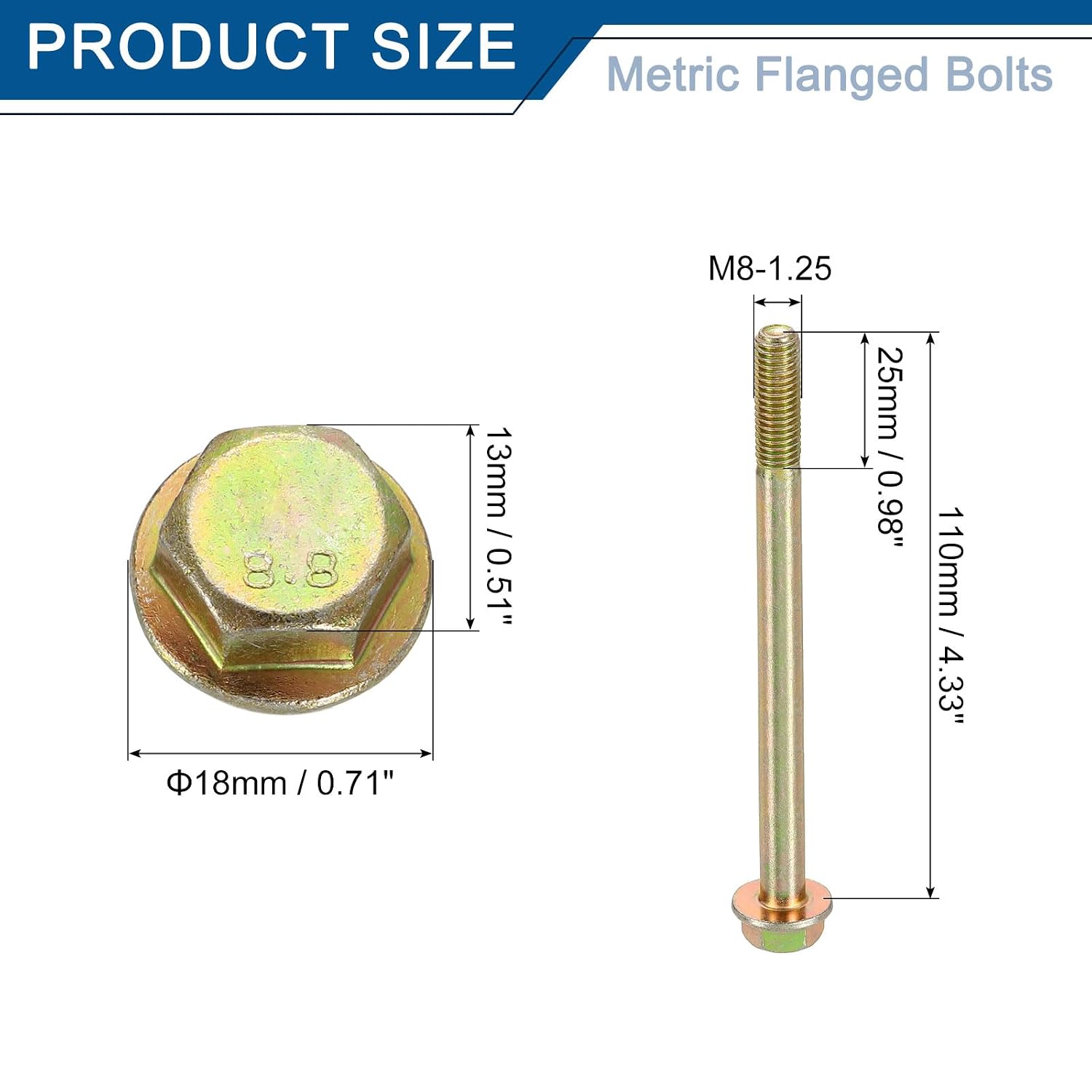

• Thread Size: M8-1.25; Bolt Length: 110mm /4.33"; Thread length: 25mm /0.98"; Diameter of head: 13mm /0.51"; Diameter of hex washer: 18mm /0.71"; Thread Coverage: Partial Thread; Screw Type: Metric Flanged Bolts - DIN 6921

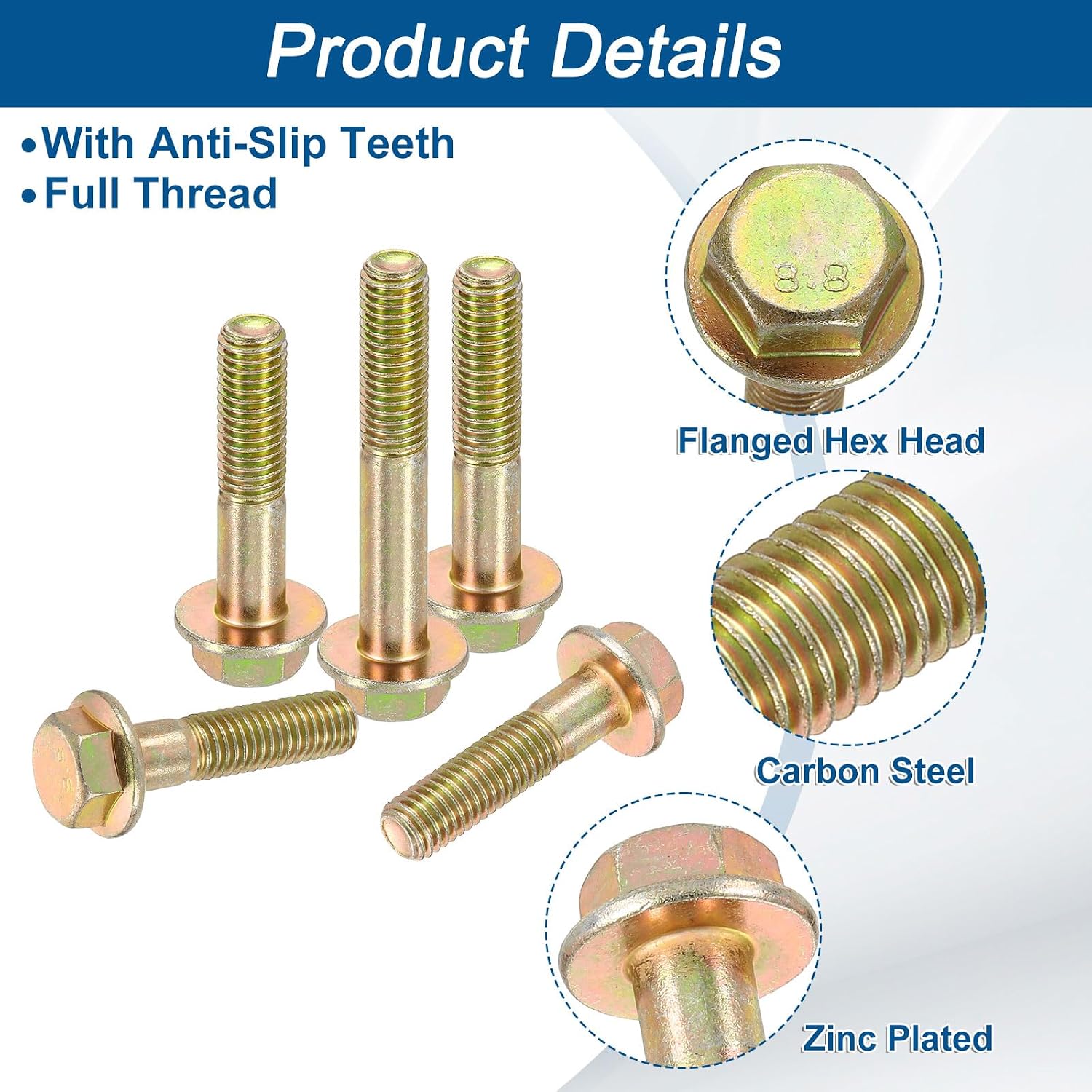

• Flange Hex Head: The bolts feature a hex flange head design that provides enhanced grip during installation. The washer offers a larger bearing surface, reducing the risk of slippage.
• Wide Applications: Hex flange head bolts are widely used in furniture assembly, office equipment, communication devices, shipbuilding, and machinery. Allowing for quick and efficient installation with wrenches or sockets, ensuring strong and reliable connections in both home and industrial settings.
• Durable Material & Finish: Made of carbon steel with a strength grade of 10.9, it offers high hardness, good toughness, and wear resistance. Zinc plated increases hardness and wear resistance, allowing it to maintain its sharpness and machining efficiency longer, and also provides corrosion resistance.
• Tips: Ensure that the selected bolt size matches the application requirements to avoid overloading or failure. Additionally, when using a wrench to tighten the bolt, appropriate torque should be applied to prevent over-tightening, which can result in stripping threads or loosening.
