UL Listed 6 Pcs 12Amp Din Rail Relay 24V DC Relay Coil, 5 Pin SPDT 1NO 1NC

Product Overview

The ZJWZJH UL Listed 6 Pcs 12Amp Din Rail Relay 24V DC Relay Coil is a Electromechanical Relays product by ZJWZJH. It features [ ul listed ] our 24v relay power relay through.

Key Features

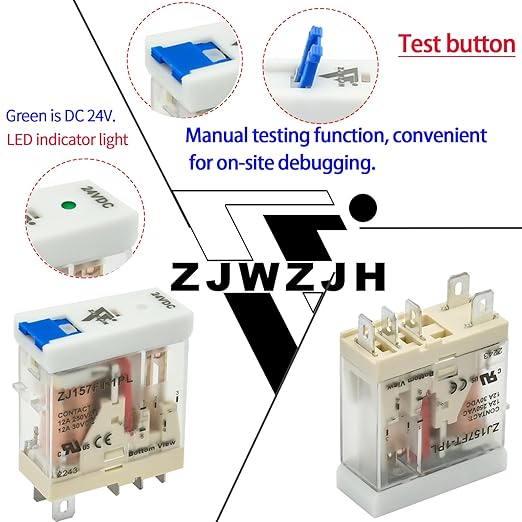

• [ UL Listed ] Our 24V Relay Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.

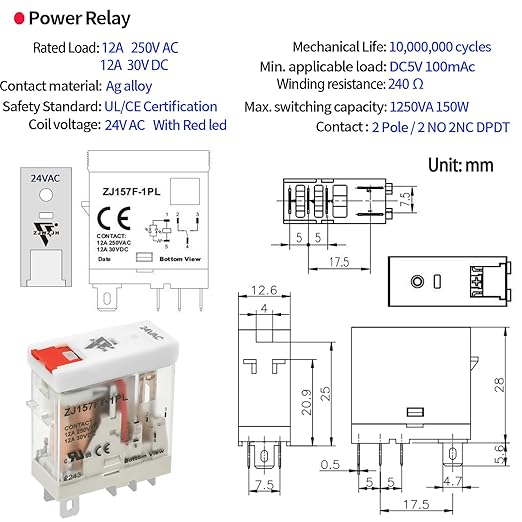

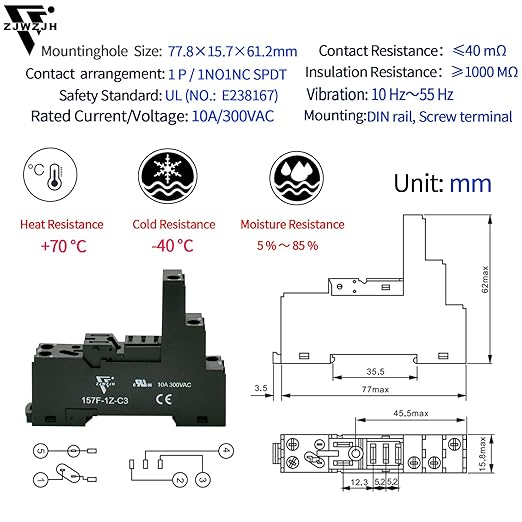

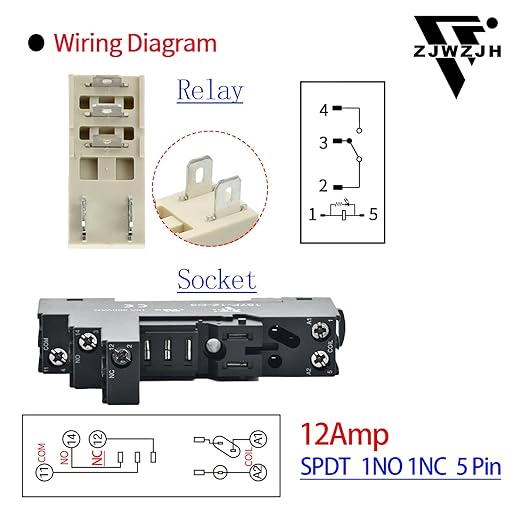

• 24 Volt Relay, Contact: SPDT 1 Normally Closed + 1 Normally Open,1 Poles. Rated carry current:8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.
• The relay is equipped with a green LED light and a visual window to check the contact status. The shell is transparent frosted and non slip.

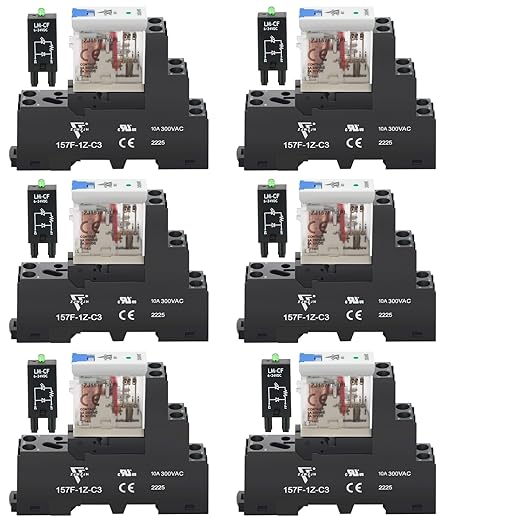

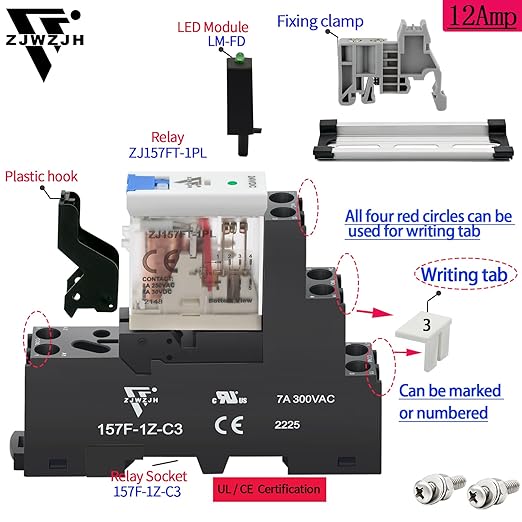

• Package: 6 Pcs Power Relay ,6 Pcs Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times
• The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,

Why Choose the ZJWZJH UL Listed 6 Pcs 12Amp Din Rail Relay 24V DC Relay Coil

The ZJWZJH UL Listed 6 Pcs 12Amp Din Rail Relay 24V DC Relay Coil offers [ ul listed ] our 24v relay power and 24 volt relay, contact: spdt 1 normally closed. These features make the ZJWZJH UL Listed 6 Pcs 12Amp Din Rail Relay 24V DC Relay Coil a strong option in the Electromechanical Relays category.

Best For

The ZJWZJH UL Listed 6 Pcs 12Amp Din Rail Relay 24V DC Relay Coil is best suited for everyday electromechanical relays needs.

Quick Summary

The ZJWZJH UL Listed 6 Pcs 12Amp Din Rail Relay 24V DC Relay Coil is a Electromechanical Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Silver Alloy. Contact Type: Normally Open. Current Rating: 8 Amps. Mounting Type: DIN Rail Mount. Price: $75.88.

Product Specifications
