Product Overview
The ZJWZJH UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp SPDT with LED Indicator is a Relays product by ZJWZJH. It features 【ul listed 】electromagnetic relay through ul and vde certification, socket.
Key Features

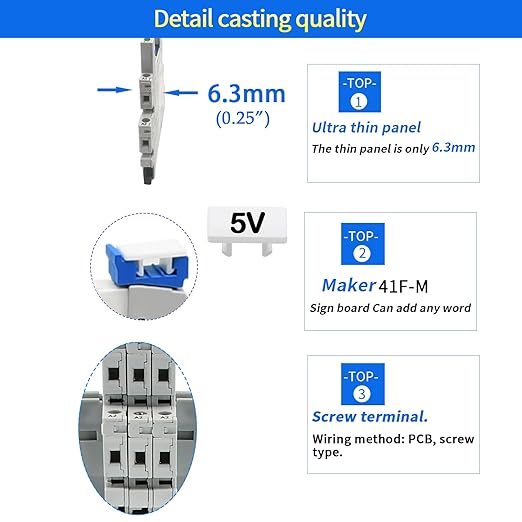

- 【UL Listed 】Electromagnetic relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name: Subminiature Power Relay. The thickness is only 0.24 "/6.2mm.
- Contact : 1 Form C(1NO 1NC); Number of Terminals : 5 Pin; Coil Voltage:AC/DC 24V; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.

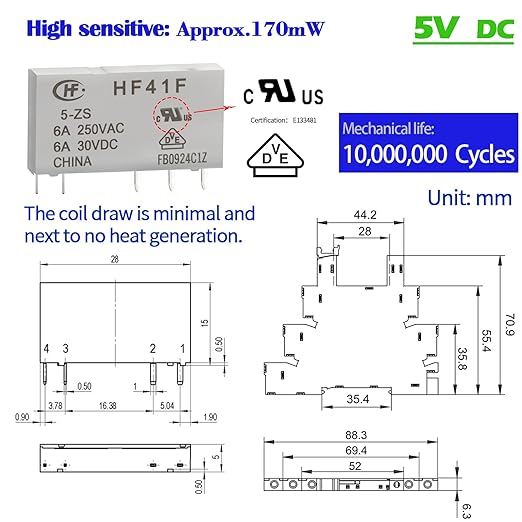

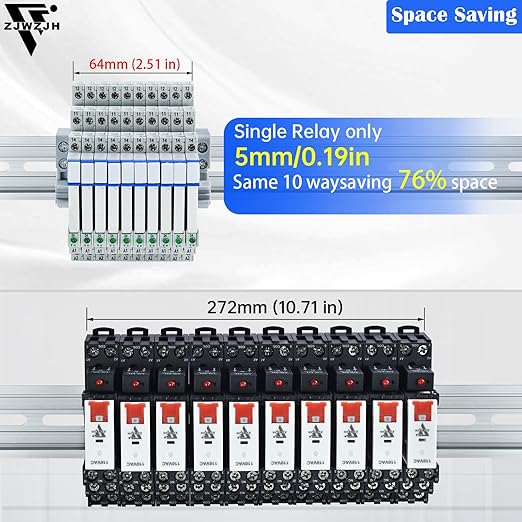

- 5V Relay Model:HF41F/5-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W)
- Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :140mm (5.51").

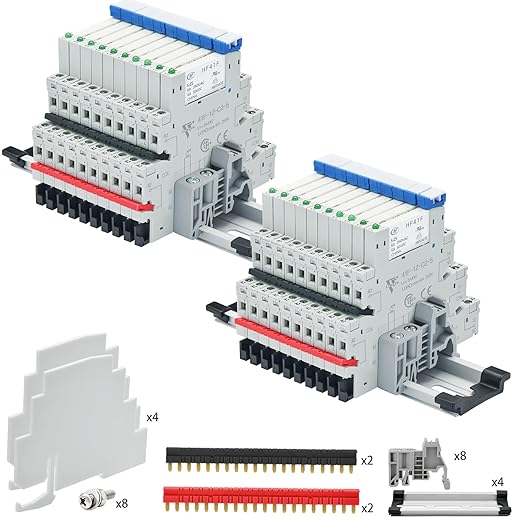

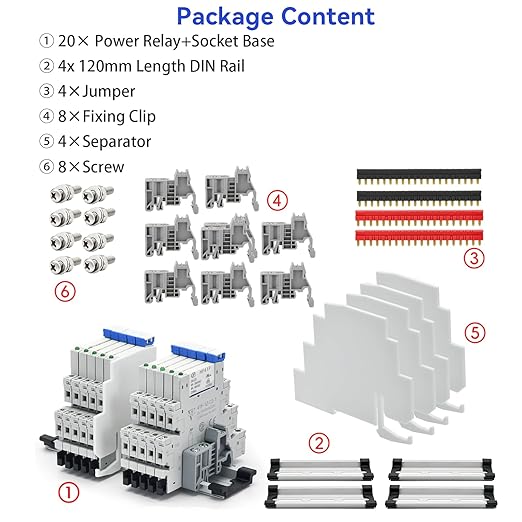

- 【Package】Package Content : 20× Power Relay; 20× Relay Socket Base; 4x 140mm Length DIN Rail; 6×Jumper;8×Fixing Clip;4×Separator; 8×Screw.Ambient temperature: -40℃ ~ 70℃.
Why Choose the ZJWZJH UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp SPDT with LED Indicator
The ZJWZJH UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp SPDT with LED Indicator offers 【ul listed 】electromagnetic relay through ul and vde and contact : 1 form c(1no 1nc); number of. These features make the ZJWZJH UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp SPDT with LED Indicator a strong option in the Relays category.
Best For
The ZJWZJH UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp SPDT with LED Indicator is best suited for everyday relays needs.
Quick Summary
The ZJWZJH UL Listed 20Pcs 5V Electromagnetic Relay 5 Volt DC Relay Miniature 1NO 1NC 6Amp SPDT with LED Indicator is a Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Agsno₂. Contact Type: Normally Open. Current Rating: 6 Amps. Mounting Type: DIN Rail Mount. Price: $164.98.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Agsno₂ |
| Contact Type | Normally Open |
| Current Rating | 6 Amps |
| Mounting Type | DIN Rail Mount |
