Product Overview

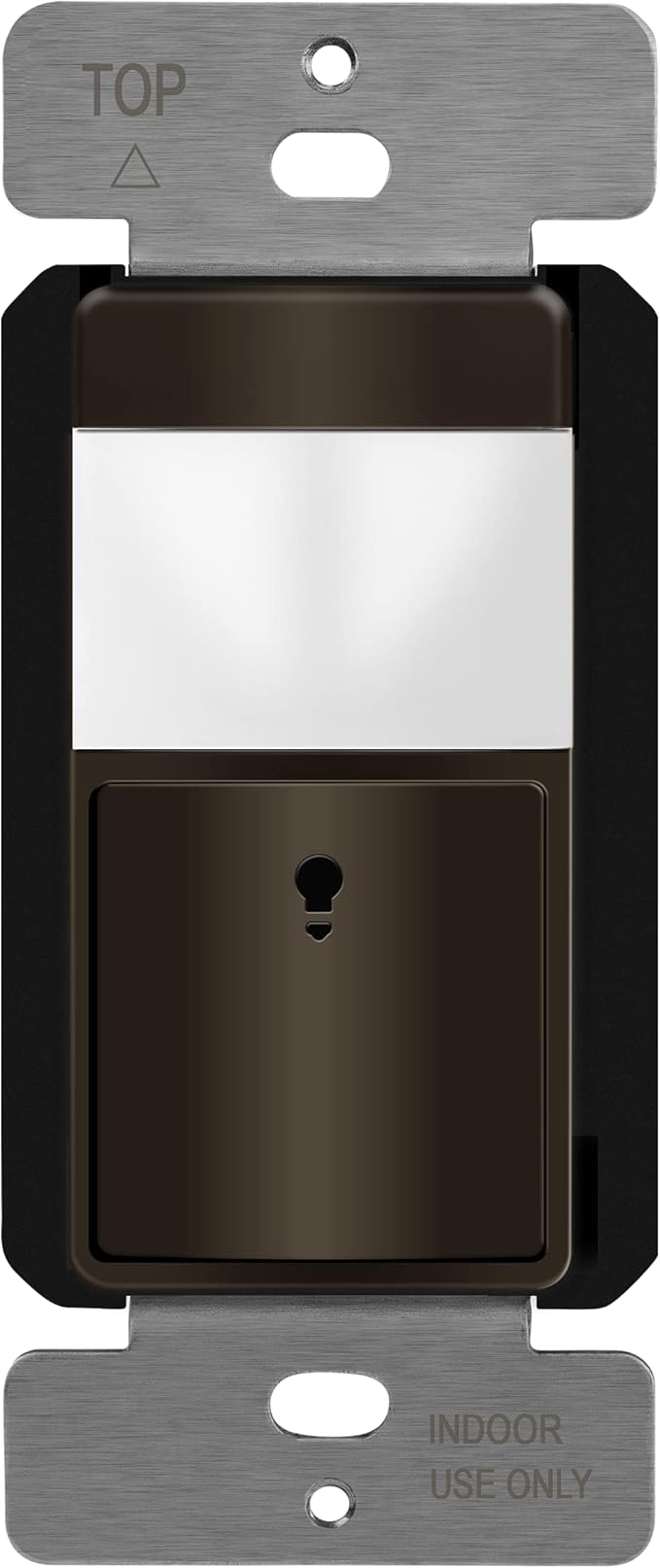

The TOPGREENER PIR Motion Sensor Switch is a Motion-Activated Switches product. It features passive infrared (pir) sensor detects motion to automatically turn lights.
Key Features
- Passive infrared (PIR) sensor detects motion to automatically turn lights on and off based on the occupancy and vacancy in a room
- Features CDS technology, an automatic ambient light level sensing technology that remembers your on/off behaviors to turn your lights on at your preferred light level; for example, if you turn the switch off within 15 seconds of it turning on, the sensor will not turn on at that light level anymore

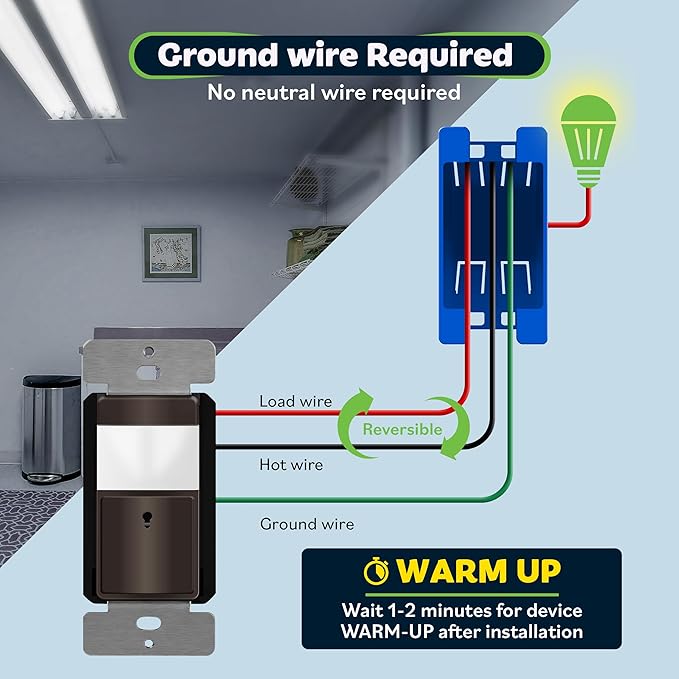

- Universal wiring design featuring interchangeable hot and load wires makes installation easier; no longer second guess which wire goes where

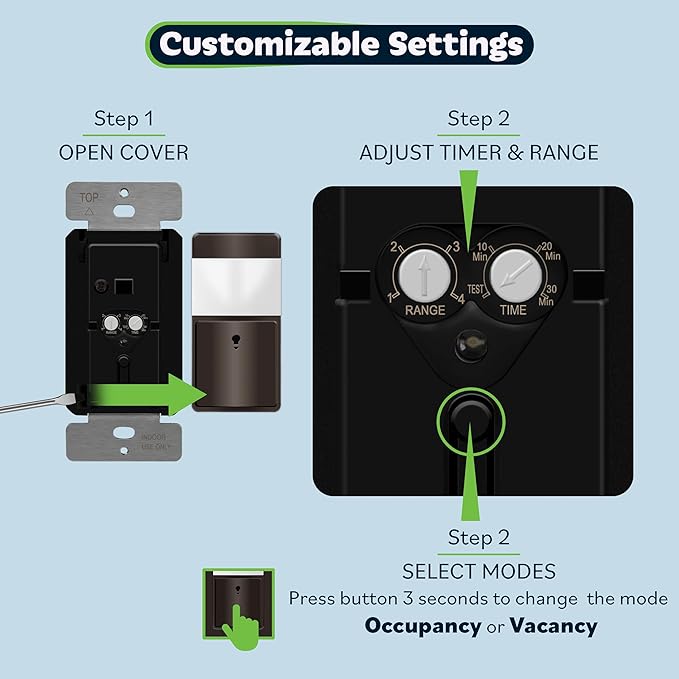

- Occupancy sensor mode (Auto ON, Auto OFF) and vacancy sensor mode (Manual ON, Auto OFF) allow you to customize the sensor according to your needs; fixed time delays: 15 sec (Test), 5 min, 10 min, 20 min, 30 min; adjustable range
- Neutral wire not required, ground wire required for installation; 1200 square feet coverage area, 180-degree field of view; 5A, 120VAC, 1500W Tungsten, 150W CFL/LED, 1/6HP motor; operating temperature (32 – 104°F); single-pole only; CA Title 20 & 24 compliant; UL listed; wall plate sold separately
Why Choose the TOPGREENER PIR Motion Sensor Switch
The TOPGREENER PIR Motion Sensor Switch offers passive infrared (pir) sensor detects motion to automatically and features cds technology, an automatic ambient light level. These features make the TOPGREENER PIR Motion Sensor Switch a strong option in the Motion-Activated Switches category.
Best For
The TOPGREENER PIR Motion Sensor Switch is best suited for everyday motion-activated switches needs.
Quick Summary
The TOPGREENER PIR Motion Sensor Switch is a Motion-Activated Switches product by TOPGREENER. Operation Mode: Auto. Current Rating: 5 Amps. Operating Voltage: 120 Volts. Contact Type: Normally Closed. Connector Type: Screw. Price: $36.28.
Product Specifications
| Specification | Details |
|---|---|
| Operation Mode | Auto |
| Current Rating | 5 Amps |
| Operating Voltage | 120 Volts |
| Contact Type | Normally Closed |
| Connector Type | Screw |
| Brand | TOPGREENER |
| Switch Type | Single Pole |
| Terminal | 2p6t |
| Material | Plastic |
| Item dimensions L x W x H | 4.5 x 2.5 x 2.5 inches |
