Product Overview
The TOAUTO DRO 3 Axis / 2 Axis Digital Readout 200mm Linear Scale 8" Precision 5um for Bridgeport/Knee Mill Lathe Milling Machine is a Linear Sensors product. It features 【travel length】the optical linear scale travel length : 200mm (8").
Key Features

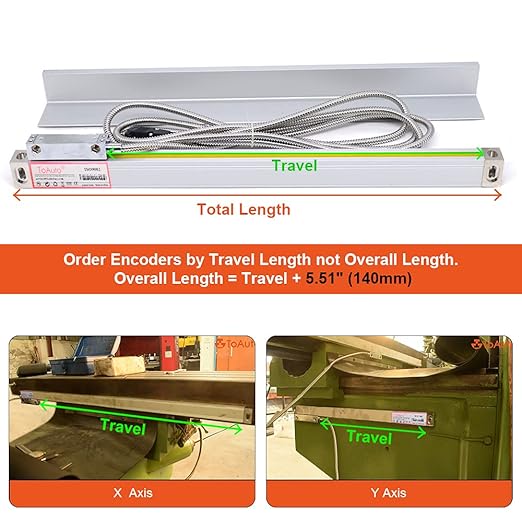

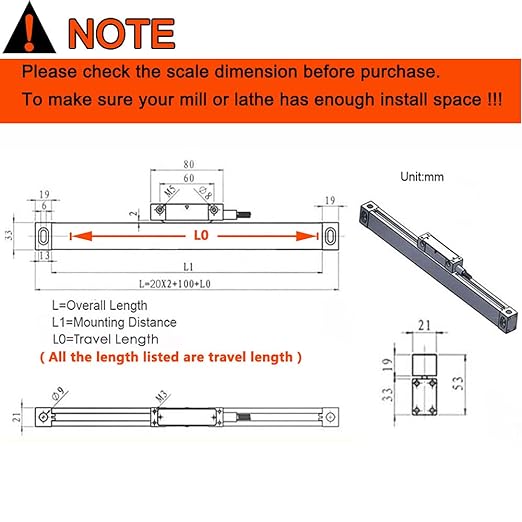

- 【TRAVEL LENGTH】The optical linear scale travel length : 200mm (8") . Total length=travel length+140mm(5.5”) . Travel length ONLY comes in 50mm increment ( 50/100/150....1000MM) . Note : You will only receive 1pc 200mm Linear Scale when you select this option.
- 【HIGH PERFORMANCE】Measurement accuracy of the linear sensor can be accurate to 5 micron(0.005mm / 0.0002") to reduce working errors.

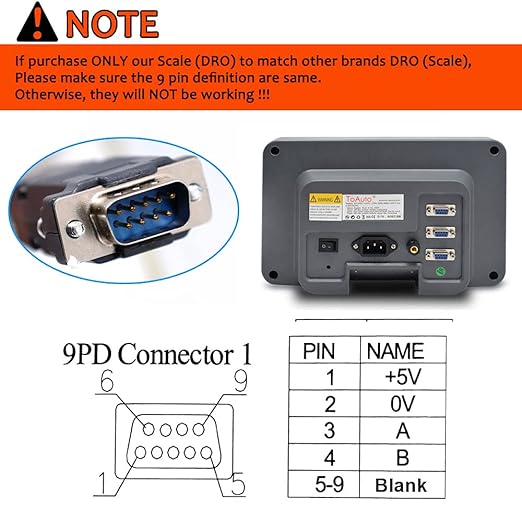

- 【INTERFACE&SIGNAL CABLE】TTL Square wave input signal through DB9 (RS232) interface with 9pins, default 3meter signal cable applies multilayer shielded wire steel and metal shell protection.

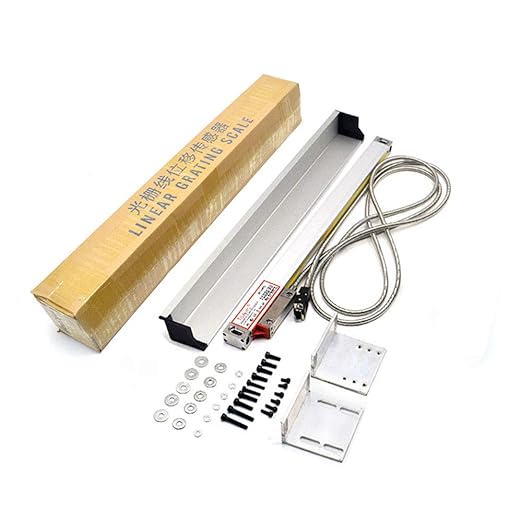

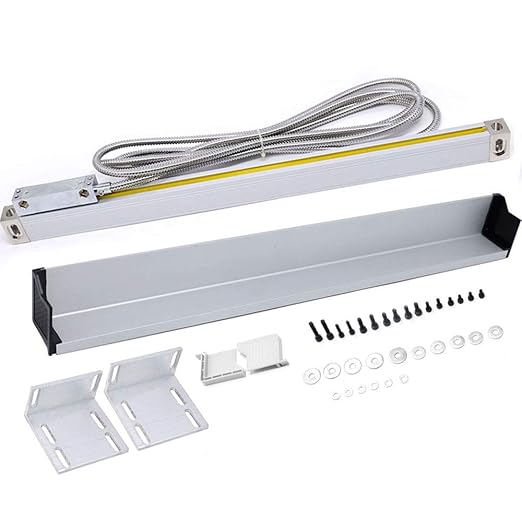

- 【FULL MOUNTING KIT】The package include 1pc 200mm linear scale , 1pc L type mounting plate, 1pc scale cover and some screws, easy installation.
- All Products will be provided for 2 year warranty after sales and lifetime technical support.
Why Choose the TOAUTO DRO 3 Axis / 2 Axis Digital Readout 200mm Linear Scale 8" Precision 5um for Bridgeport/Knee Mill Lathe Milling Machine
The TOAUTO DRO 3 Axis / 2 Axis Digital Readout 200mm Linear Scale 8" Precision 5um for Bridgeport/Knee Mill Lathe Milling Machine offers 【travel length】the optical linear scale travel length : and 【high performance】measurement accuracy of the linear sensor can. These features make the TOAUTO DRO 3 Axis / 2 Axis Digital Readout 200mm Linear Scale 8" Precision 5um for Bridgeport/Knee Mill Lathe Milling Machine a strong option in the Linear Sensors category.
Best For
The TOAUTO DRO 3 Axis / 2 Axis Digital Readout 200mm Linear Scale 8" Precision 5um for Bridgeport/Knee Mill Lathe Milling Machine is best suited for everyday linear sensors needs.
Quick Summary
The TOAUTO DRO 3 Axis / 2 Axis Digital Readout 200mm Linear Scale 8" Precision 5um for Bridgeport/Knee Mill Lathe Milling Machine is a Linear Sensors product by TOAUTO. Brand: TOAUTO. Material: Aluminum. Product Dimensions: 11.61"L x 6.69"W. Range: 80 to 260 Volt. Measurement Accuracy: 5μm. Price: $141.88.
Product Specifications
| Specification | Details |
|---|---|
| Brand | TOAUTO |
| Material | Aluminum |
| Product Dimensions | 11.61"L x 6.69"W |
| Range | 80 to 260 Volt |
| Measurement Accuracy | 5μm |
