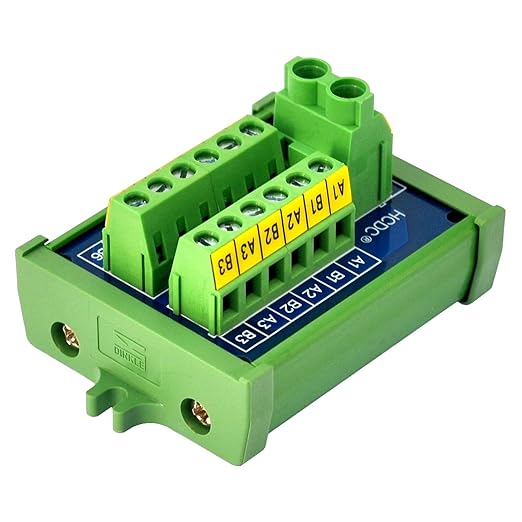

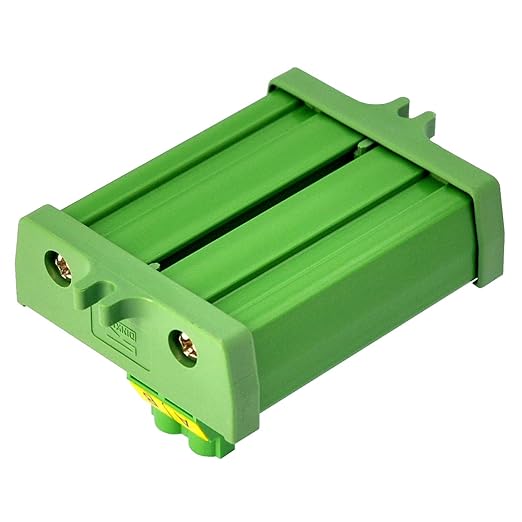

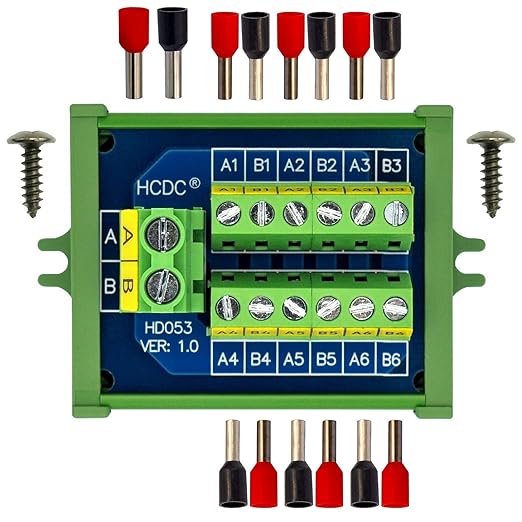

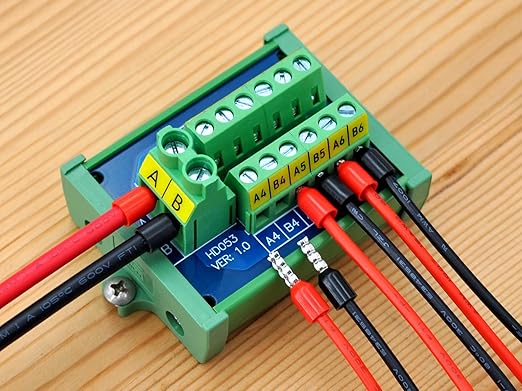

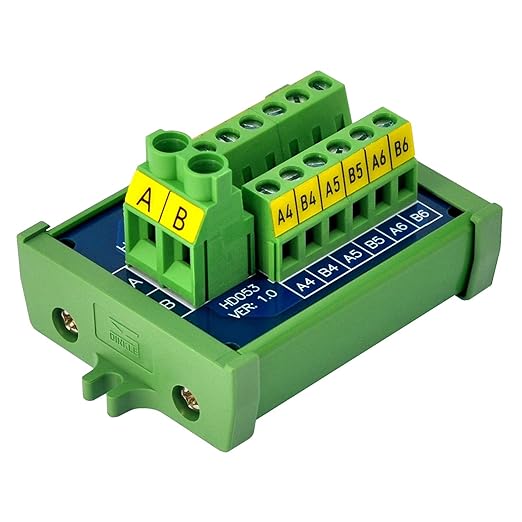

Screw Mount 30Amp 48V 2x6 Position Screw Terminal Block Distribution Module

Product Overview

The HCDC Screw Mount 30Amp 48V 2x6 Position Screw Terminal Block Distribution Module is a Ground Circuit Terminal Blocks product by HCDC. It features screw mount 30amp 48v 2x6 position screw terminal block distribution.

Key Features

• Screw mount 30Amp 48V 2x6 position screw terminal block distribution module.
• Rated current: 30 Amp(total input or output). Maximum voltage: 48V.
• A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
• A1~B3 / A4~B6 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
• High quality fireproof nylon material mount carrier(UL CE certified, not China low quality carrier). UL CE CQC certified terminal blocks. UL CE certified FR-4 glass fiber PCB.

Why Choose the HCDC Screw Mount 30Amp 48V 2x6 Position Screw Terminal Block Distribution Module

The HCDC Screw Mount 30Amp 48V 2x6 Position Screw Terminal Block Distribution Module offers screw mount 30amp 48v 2x6 position screw terminal and rated current: 30 amp(total input or output). maximum. These features make the HCDC Screw Mount 30Amp 48V 2x6 Position Screw Terminal Block Distribution Module a strong option in the Ground Circuit Terminal Blocks category.

Best For

The HCDC Screw Mount 30Amp 48V 2x6 Position Screw Terminal Block Distribution Module is best suited for everyday ground circuit terminal blocks needs.

Quick Summary

The HCDC Screw Mount 30Amp 48V 2x6 Position Screw Terminal Block Distribution Module is a Ground Circuit Terminal Blocks product by HCDC. Current Rating: 30 Amps. Item Pitch: 7.62 Millimeters. Gauge: 1. Connector Type: Screw. Number Of Contacts: 6. Price: $24.75.

Product Specifications
