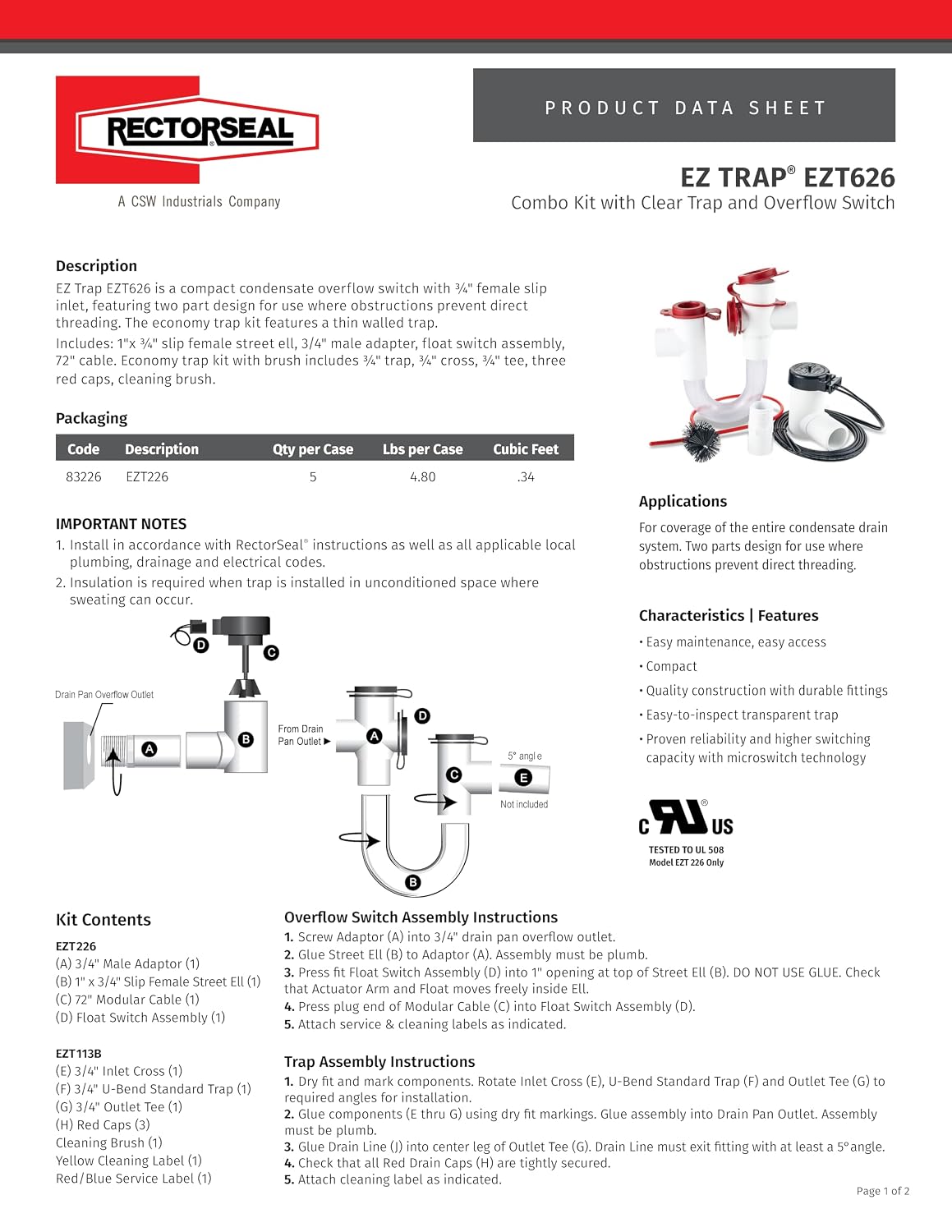

RectorSeal EZ Trap 83626 Combo Kit with Clear Trap and Overflow Switch with Brush, 600 Series, for Light Duty Applications, Easy Installation, HVAC, 3/4"" w/48 Cable

Product Details

• Brand: Rectorseal
• Size: 11" x 13" x 3"
• Item Dimensions: 13 x 11 x 3 inches
• Item Weight: 6.4 ounces
• Connector Type: Crimp
• Included Components: EZ Trap
• Unit Count: 5 Count
• Model Number: 83626
• Manufacturer: The Rectorseal Corporation
• Exterior Finish: Plastic
• Inlet Connection Type: Slip
• Number of Ports: 2
• Thread Size: 3/4 inch
• Thread Type: 3/4" NPT
• Valve Type: EZ Trap
• Inlet Connection Size: 0.75 inches
• Outlet Connection Size: 0.75 inches
• Material Type: Plastic
• Specification Met: Ip54
• Number of Packs: 1
• Manufacturer Warranty Description: Limited lifetime warranty
• Item Type Name: EZ Trap
• Set Name: EZ Trap 600 Series Combo Kit
• Manufacturer Part Number: 83626

About this item

• APPLICATION: EZ Trap 600 overflow switch features two part design for use where obstructions prevent direct threading; economy trap kit features thinner walled trap kit for light duty applications
• OVERFLOW PROTECTION: For coverage of the entire condensate drain system; proven reliability and higher switching capacity with microswitch technology
• EASY MAINTENANCE: Condensate trap kit is compact and offers easy access; easy to inspect and clean; included brush offers quick and simple cleaning maintenance; watertight red caps provide easy access to clean the trap and drain pan outlet

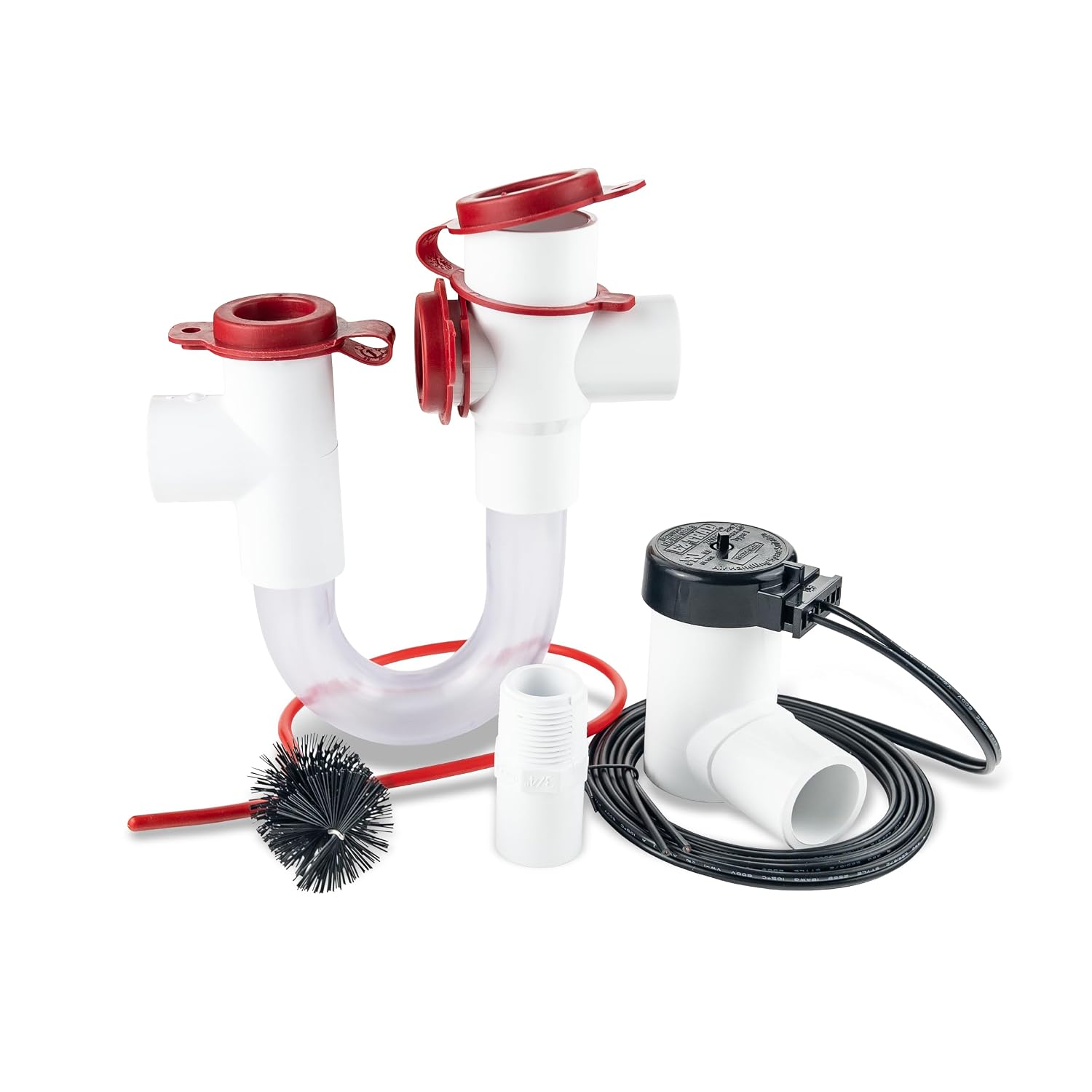

• SPECIFICATIONS: 3/4" female slip inlet includes 1" x 3/4" slip female street ell, 3/4" male adaptor, float switch assembly, 48" cable; economy trap kit with brush includes 3/4" blow molded trap, 3/4" cross, 3/4" tee, three 3/4" red caps, cleaning brush, 1" drop
• FOR THE TRADESMAN: RectorSeal is recognized as a leading provider of quality solutions for the professional trades serving heating, ventilation, and air conditioning (HVAC/R), plumbing, electrical, and construction markets
• Compact overflow switch with 3/4" female slip inlet
• Two part design for use where obstructions prevent direct threading
• Coverage of the entire condensate drain system
