Product Overview
The ZJWZJH Power Relay 12V Miniature Electromagnetic Relay 8Amp DPDT 2-Pole with Indicator Light is a Electromechanical Relays product by ZJWZJH. It features our miniature pcb power relay through ul certification and ce.
Key Features

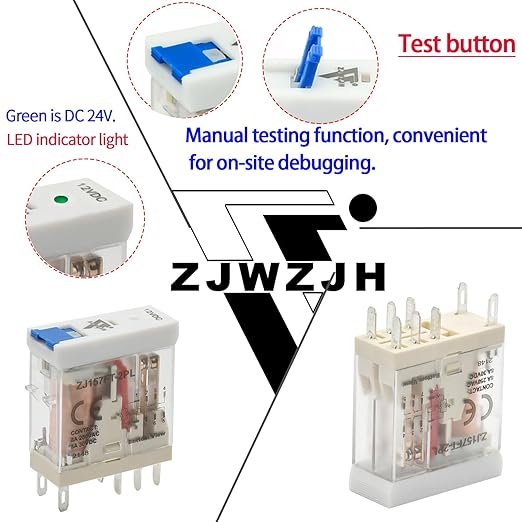

- Our Miniature PCB Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.

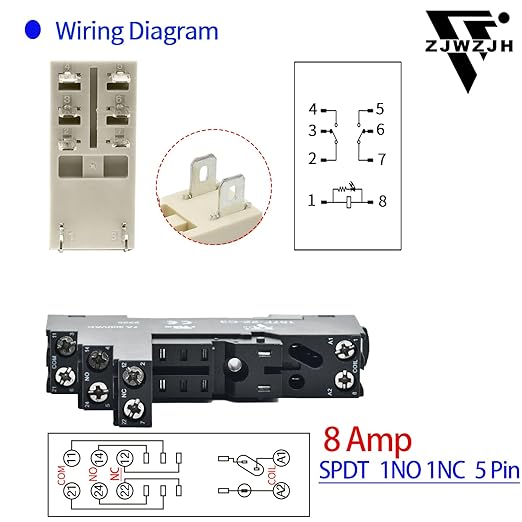

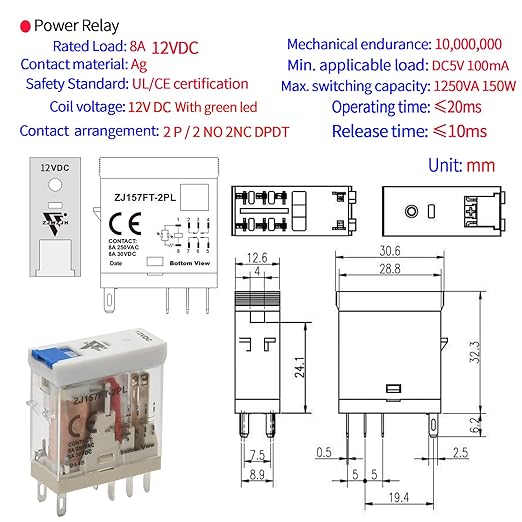

- Coil Voltage: 12VDC, Coil Resistance: 1100 Ω.Relay Name:ZJ157FT-2PL; Rated carry current:8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.Contact:2NO2NC DPDT 2 Poles.

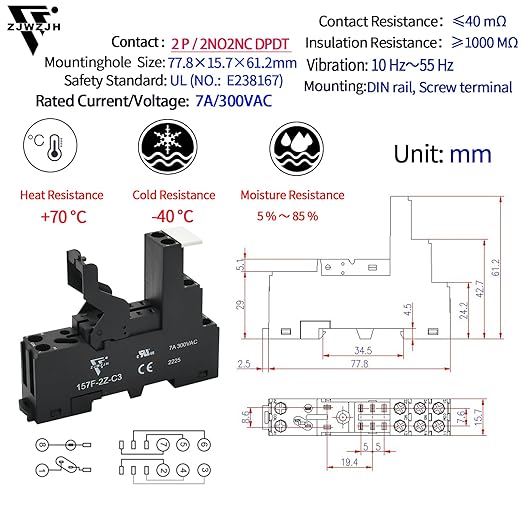

- Socket Safety Standard:UL (NO.: E238167) ;Socket Name :157F-2Z-C3; Outline Size: 77.8×15.7×61.2mm(3.06*0.62*2.41");Number of plug–in and draw–out ≥500 times .

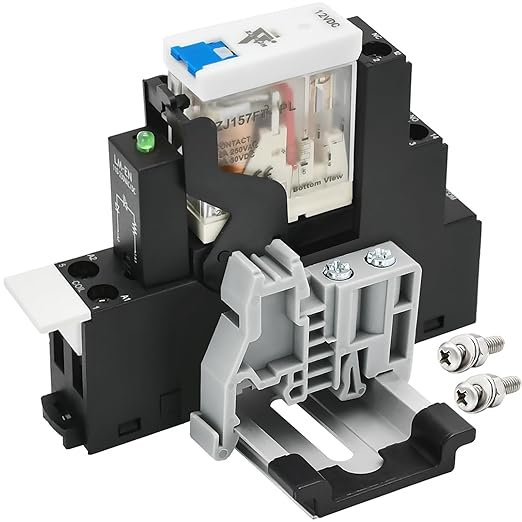

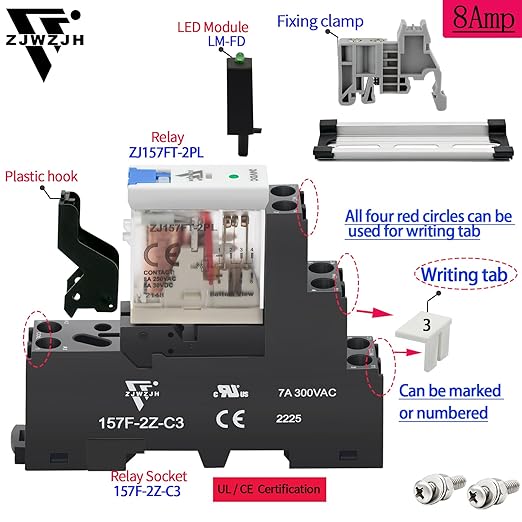

- Package Content : 1 x Power Relay ,1 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times

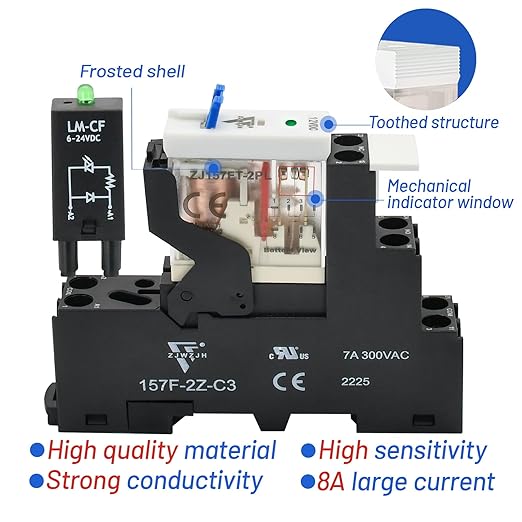

- The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,
Why Choose the ZJWZJH Power Relay 12V Miniature Electromagnetic Relay 8Amp DPDT 2-Pole with Indicator Light
The ZJWZJH Power Relay 12V Miniature Electromagnetic Relay 8Amp DPDT 2-Pole with Indicator Light offers our miniature pcb power relay through ul certification and coil voltage: 12vdc, coil resistance: 1100 ω.relay name:zj157ft-2pl;. These features make the ZJWZJH Power Relay 12V Miniature Electromagnetic Relay 8Amp DPDT 2-Pole with Indicator Light a strong option in the Electromechanical Relays category.
Best For
The ZJWZJH Power Relay 12V Miniature Electromagnetic Relay 8Amp DPDT 2-Pole with Indicator Light is best suited for everyday electromechanical relays needs.
Quick Summary
The ZJWZJH Power Relay 12V Miniature Electromagnetic Relay 8Amp DPDT 2-Pole with Indicator Light is a Electromechanical Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Silver. Contact Type: Normally Open. Current Rating: 8 Amps. Mounting Type: Screw Mount. Price: $16.48.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Silver |
| Contact Type | Normally Open |
| Current Rating | 8 Amps |
| Mounting Type | Screw Mount |
