OONO 16 Amp 2x12 Position Terminal Block Distribution Module

Product Overview

The OONO 16 Amp 2x12 Position Terminal Block Distribution Module for AC DC is a Ground Circuit Terminal Blocks product. It features 16amp 48v 2x12 position screw terminal block distribution module. support.

Key Features

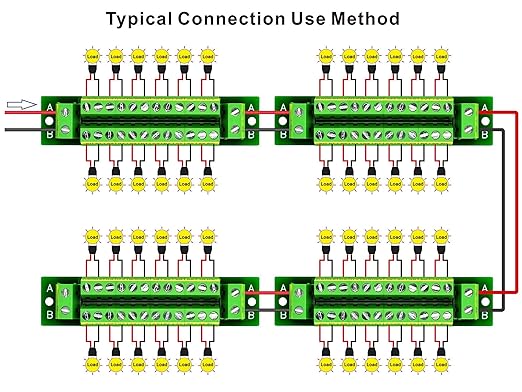

• 16Amp 48V 2x12 position screw terminal block distribution module. Support for multiple module extension connections.
• Rated current 16 Amp(total input or output), Maximum voltage 48V

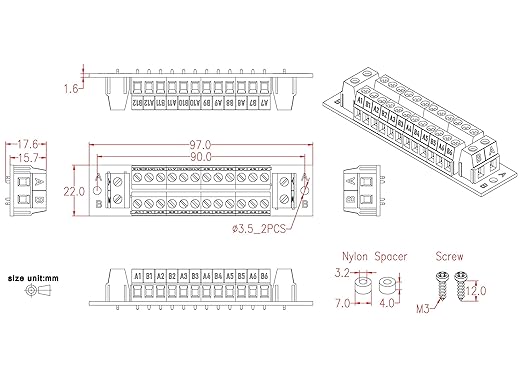

• A / B terminal blocks, Pitch 7.5mm/0.295", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
• A1~B6 / A7~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated current 16Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
• UL CE CQC certified terminal blocks, FR-4 glass fiber PCB.

Why Choose the OONO 16 Amp 2x12 Position Terminal Block Distribution Module for AC DC

The OONO 16 Amp 2x12 Position Terminal Block Distribution Module for AC DC offers 16amp 48v 2x12 position screw terminal block distribution and rated current 16 amp(total input or output), maximum. These features make the OONO 16 Amp 2x12 Position Terminal Block Distribution Module for AC DC a strong option in the Ground Circuit Terminal Blocks category.

Best For

The OONO 16 Amp 2x12 Position Terminal Block Distribution Module for AC DC is best suited for everyday ground circuit terminal blocks needs.

Quick Summary

The OONO 16 Amp 2x12 Position Terminal Block Distribution Module for AC DC is a Ground Circuit Terminal Blocks product by OONO. Current Rating: 16 Amps. Gauge: 0.01. Connector Type: Screw. Number Of Contacts: 24. Mounting Type: PCB Mount. Price: $18.13.

Product Specifications
