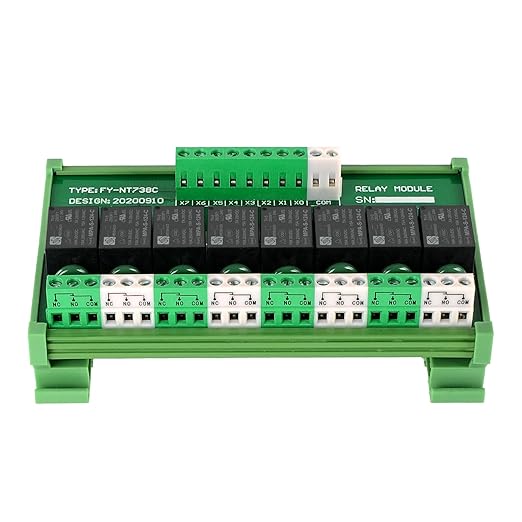

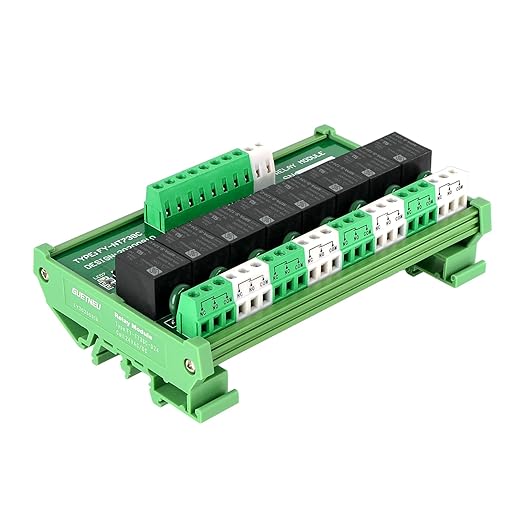

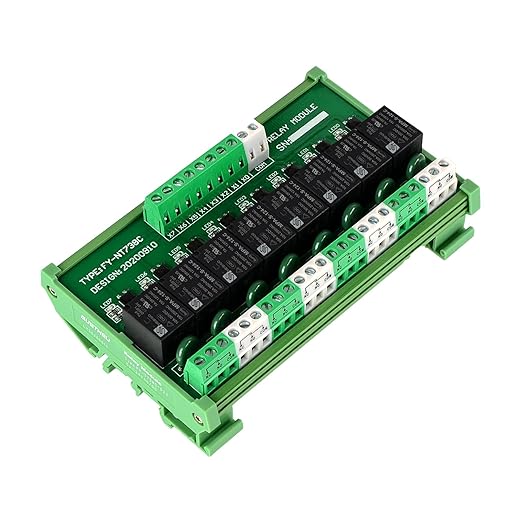

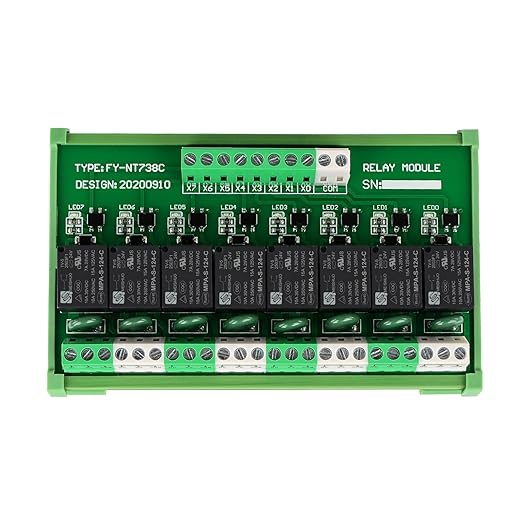

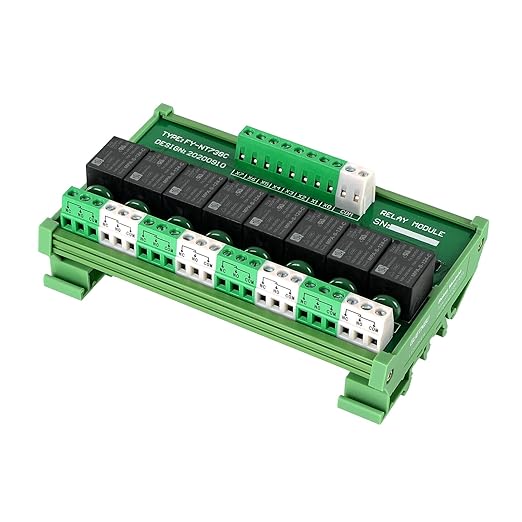

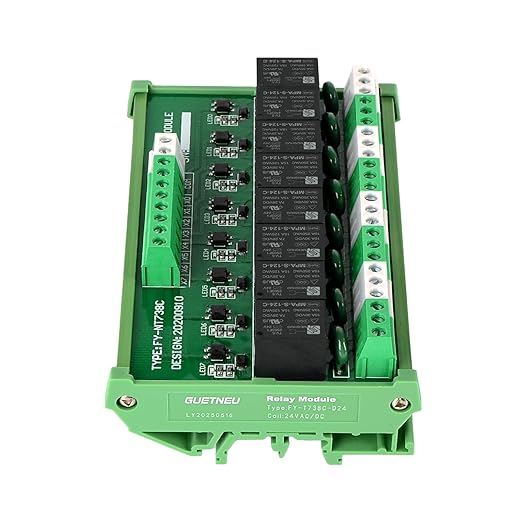

GUETNEU Relay Board, 8 Channel 1 SPDT DIN Rail Mount 24V DC/AC Relay, Interface

Product Overview

The GUETNEU Relay Board is a Electromechanical Relays product. It features about relay module: relay modules is designed to amplify current.

Key Features

• About Relay Module: Relay modules is designed to amplify current of output loads; It is mainly used for PLC, microprocessor systems and time relays etc, amplifying the control current of outputs, to protect key control systems not being destroyed
• 8 Independent Channels with Premium Build: Features 8 individual relays for separate device/circuit control, constructed with high-grade nylon for superior insulation, heat/wear resistance, and silver-alloy contacts ensuring excellent conductivity, low contact resistance, and reliable switching performance
• Easy to Install: Optional 1/2/4/8/16 channels relay interface, stable and convenient; You could also remove it from the green bracket to make it small enough to fit in narrow space such as the wall
• Easy and Safe to Use: Each relay board is well labeled for clear operation, equipped with LED indicators to allow you to know what relay is working and the signal status, designed with over voltage protection and surge suppression protection for safety

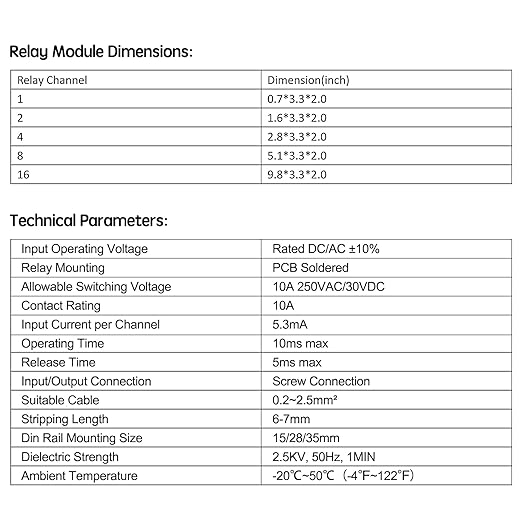

• Product Parameters: Model Number FY-NT738C-D24, power source DC, rated voltage 24VAC/DC, rated load current:10A 250VAC/30VDC

Why Choose the GUETNEU Relay Board

The GUETNEU Relay Board offers about relay module: relay modules is designed to and 8 independent channels with premium build: features 8. These features make the GUETNEU Relay Board a strong option in the Electromechanical Relays category.

Best For

The GUETNEU Relay Board is best suited for everyday electromechanical relays needs.

Quick Summary

The GUETNEU Relay Board is a Electromechanical Relays product by GUETNEU. Connector Type: Plug-In. Contact Material: Silver Alloy. Contact Type: Normally Open. Current Rating: 10 Amps. Mounting Type: DIN Rail Mount. Price: $49.48.

Product Specifications
