Electromagnetic Relay 5VDC SPDT 6Amp, Power Relays

Product Overview

The ZJWZJH Electromagnetic Relay 5VDC SPDT 6Amp is a Electromechanical Relays product by ZJWZJH. It features 【certifications】 power relay through ul and vde certification, socket through.

Key Features

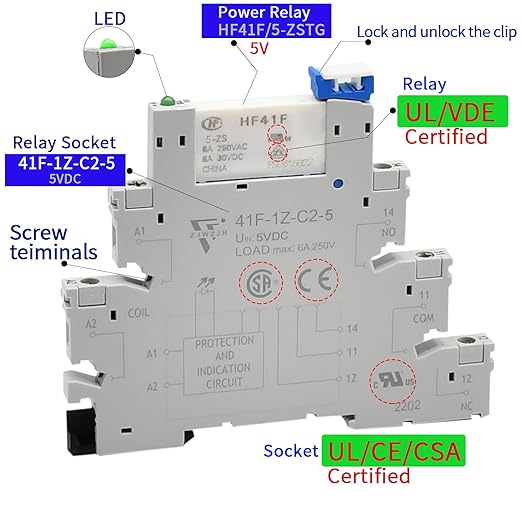

• 【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.
• 【 Relays】Relay Coil Voltage: 5V DC , Contact : 1 Form C(1NO 1NC); Number of Terminals : 5 Pin;; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.Mechanical life: 10,000,000 Cycles, Electrical life: 300,000 Cycles.

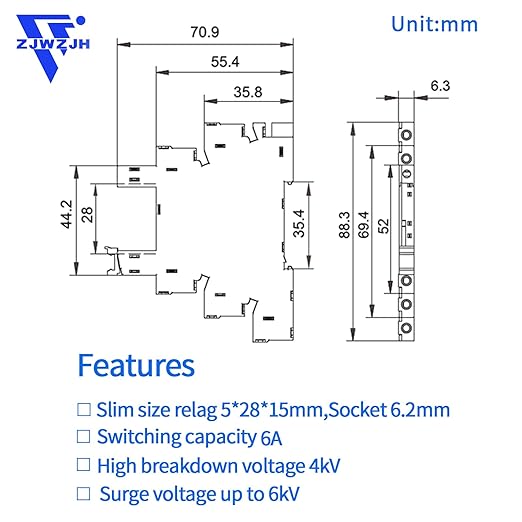

• 【Dimension】Relay Model:HF41F/5-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).
• 【Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (5)V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.

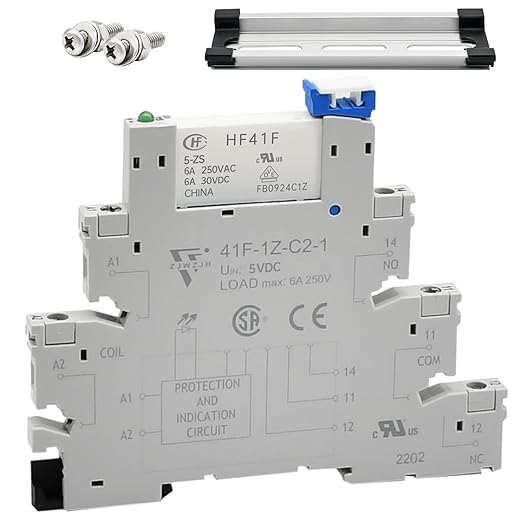

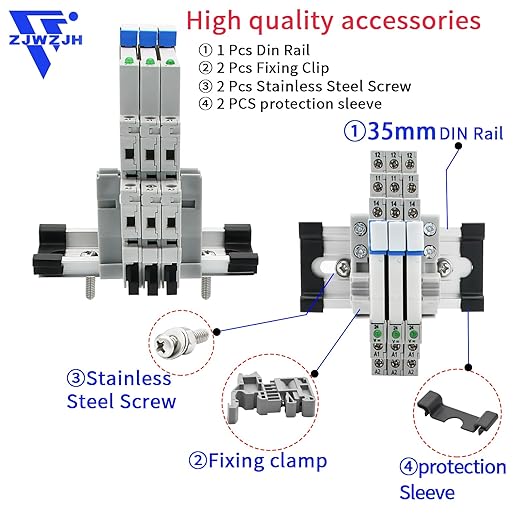

• 【Package】Package Content : 1× Power Relay; 1× Relay Socket Base; 1x DIN Rail;2×Screw.Ambient temperature: -40℃ ~ 70℃.

Why Choose the ZJWZJH Electromagnetic Relay 5VDC SPDT 6Amp

The ZJWZJH Electromagnetic Relay 5VDC SPDT 6Amp offers 【certifications】 power relay through ul and vde certification, and 【 relays】relay coil voltage: 5v dc , contact. These features make the ZJWZJH Electromagnetic Relay 5VDC SPDT 6Amp a strong option in the Electromechanical Relays category.

Best For

The ZJWZJH Electromagnetic Relay 5VDC SPDT 6Amp is best suited for everyday electromechanical relays needs.

Quick Summary

The ZJWZJH Electromagnetic Relay 5VDC SPDT 6Amp is a Electromechanical Relays product by ZJWZJH. Connector Type: Screw, Plug-in. Contact Material: Silver Tin Oxide, Silver Nickel. Contact Type: 1no 1nc. Current Rating: 6 Amps. Mounting Type: DIN Rail Mount. Price: $16.48.
