Product Overview
The DAIERTEK Bus Bar Terminal Block 4 x 5/16" (M8) Terminal Stud is a Connecting Blocks product. It features features: marine bus bar junction block 12v, these busbars will.
Key Features

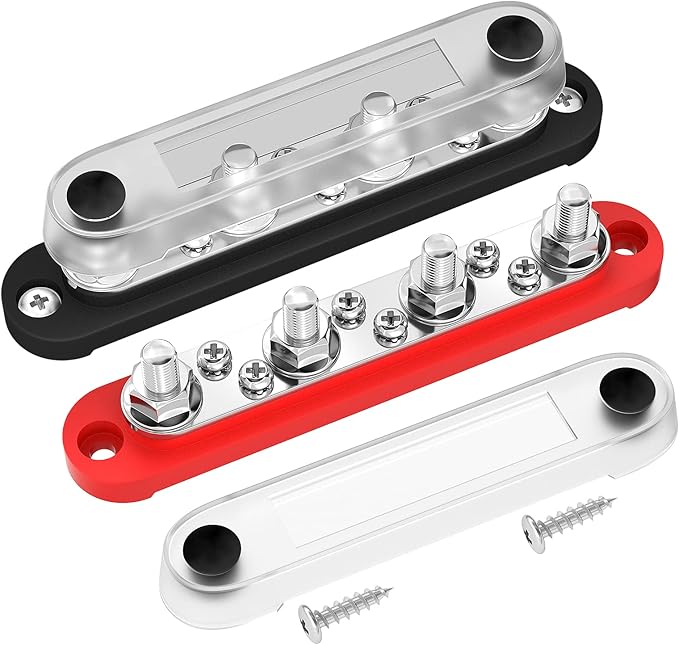

- Features: Marine bus bar junction block 12v, these busbars will come in pairs, include one positive bus bar (red one) and one negative bus bar (black one).

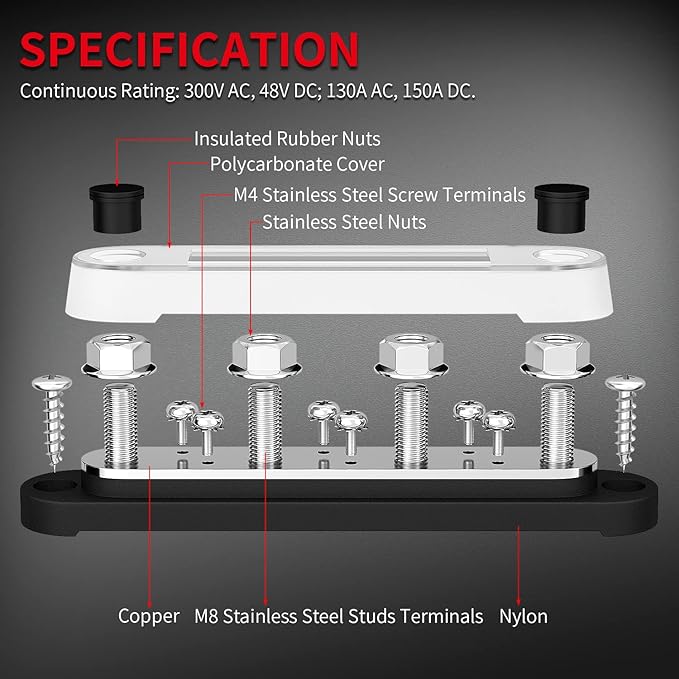

- Rating: Max voltage: 300V AC, 48V DC. Max continuous amperage: 130A AC, 150A DC. This battery distribution block will be suitable for both AC and DC systems.
- Terminals: Each battery bus bar 12v includes - M8 (5/16") terminal studs x 4 and M4 (#8) screw terminals x 6, two power bus bars in the package - one positive bus bar and one ground bus bar.

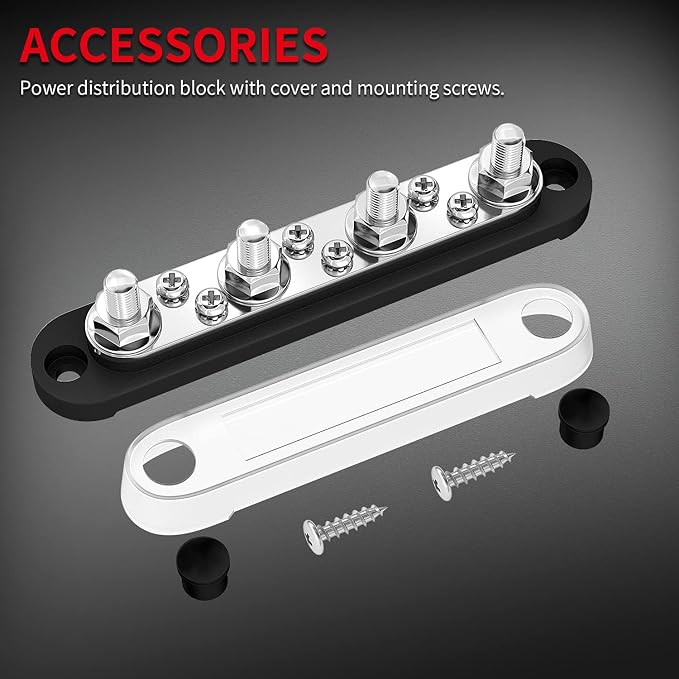

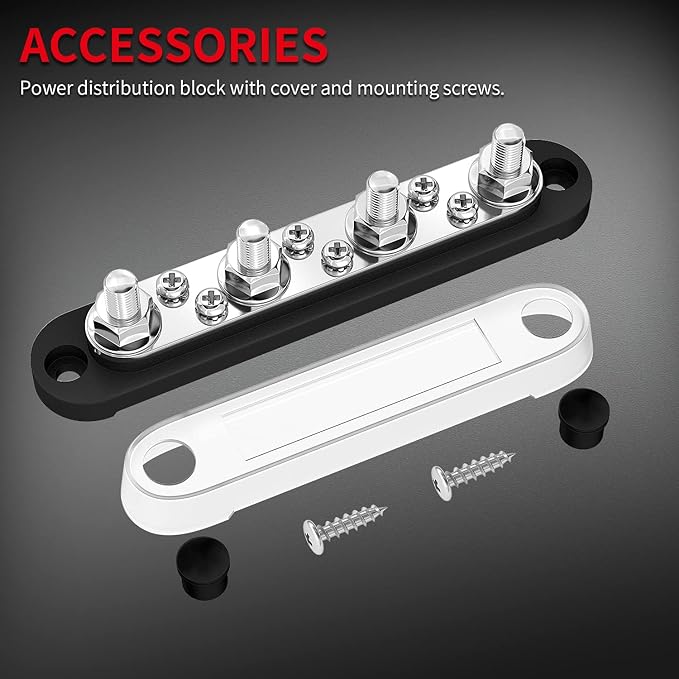

- With Cover: This 12v power distribution block will come with polycarbonate cover and insulated rubber nuts, which can cover the exposed terminals of the bus bar terminal block and prevent accidental electrical short circuit.
- Application: This battery terminal block uses copper plates and stainless steel terminals as conductors, which enables the battery distribution block to work in extreme environment, suitable for automotive, car, marine, boat, etc.
Why Choose the DAIERTEK Bus Bar Terminal Block 4 x 5/16" (M8) Terminal Stud
The DAIERTEK Bus Bar Terminal Block 4 x 5/16" (M8) Terminal Stud offers features: marine bus bar junction block 12v, these and rating: max voltage: 300v ac, 48v dc. max. These features make the DAIERTEK Bus Bar Terminal Block 4 x 5/16" (M8) Terminal Stud a strong option in the Connecting Blocks category.
Best For
The DAIERTEK Bus Bar Terminal Block 4 x 5/16" (M8) Terminal Stud is best suited for: both AC and DC systems, automotive.
Quick Summary
The DAIERTEK Bus Bar Terminal Block 4 x 5/16" (M8) Terminal Stud is a Connecting Blocks product by DaierTek. Current Rating: 150 Amps. Connector Type: Screw. Number Of Contacts: 6. Mounting Type: Panel Mount. Material: Copper, Stainless Steel. Price: $39.58.
Product Specifications
| Specification | Details |
|---|---|
| Current Rating | 150 Amps |
| Connector Type | Screw |
| Number Of Contacts | 6 |
| Mounting Type | Panel Mount |
| Material | Copper, Stainless Steel |
| Color | BB150-T4M8S6-C-RB |
| Brand | DAIERTEK |
| Voltage | 300 Volts |
| Number Of Poles | 6 |

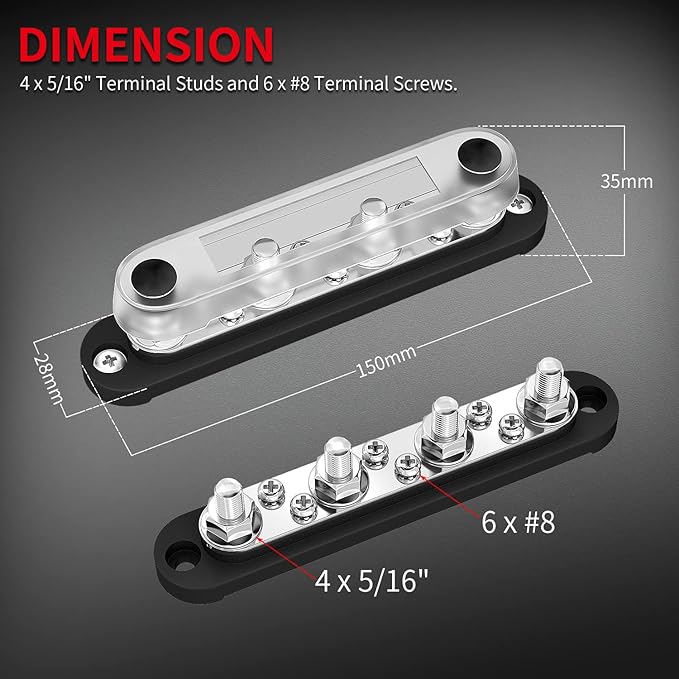

| Product Dimensions | 5.9"W x 1.37"H |
