Product Overview

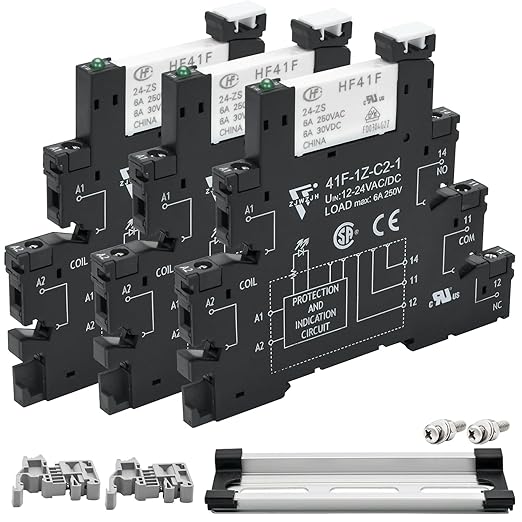

The ZJWZJH 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light is a Electromechanical Relays product by ZJWZJH. It features 【certifications】 power relay through ul and vde certification, socket through.
Key Features

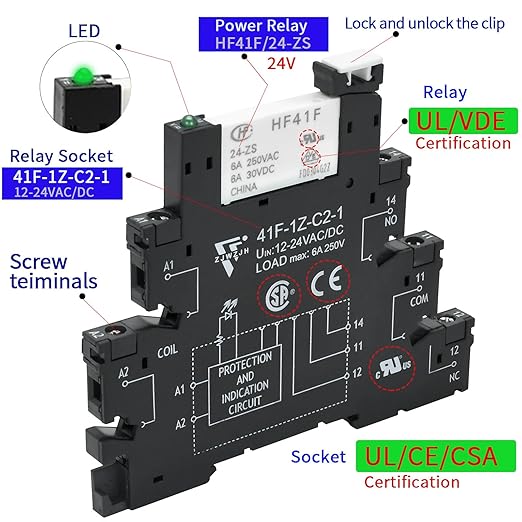

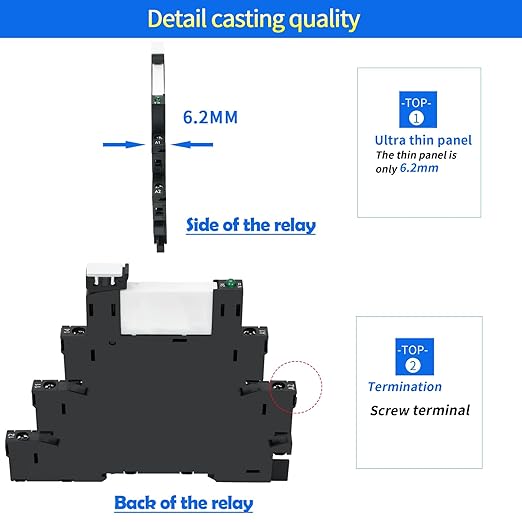

- 【Certifications】 Power Relay through UL and VDE certification, Socket through UL / CSA and CE certification.Product Name:Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.

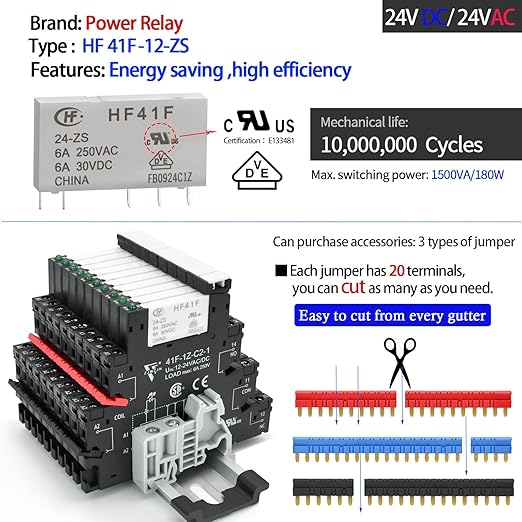

- 【Electromechanical Relays】Relay Coil Voltage: 24V AC/DC , Contact : SPDT 1 Normally Closed + 1 Normally Open. Terminals : 5 Pin. Contact Rating: 6Amp 250VAC / 30VDC, Construction: Plastic seaied.Mechanical life: 10,000,000 Cycles, Electrical life: 300,000 Cycles.
- 【Black Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (12~24)V AC/DC; Apply to relay the rated voltage: (12~24)V DC; Input voltage polarity: NO.

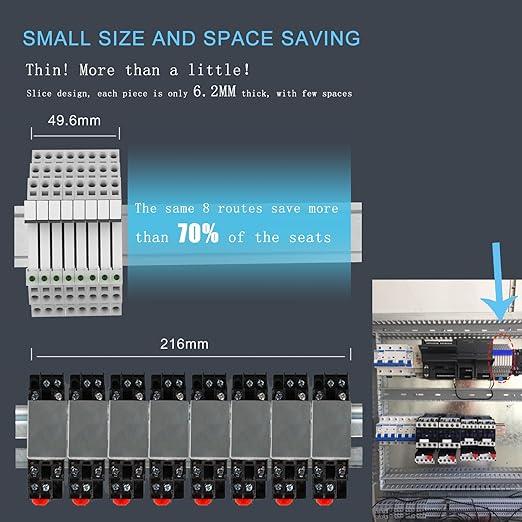

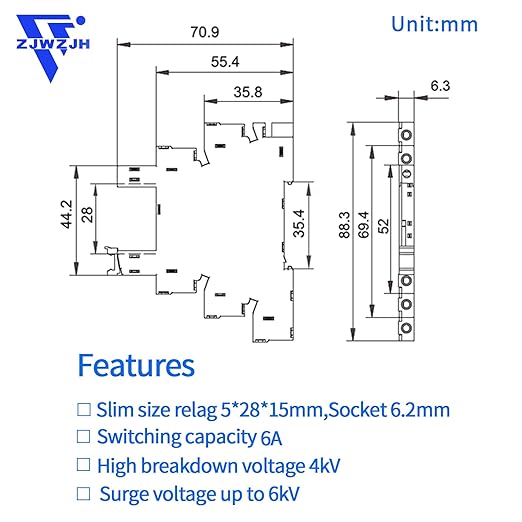

- 【Dimension】Relay Model:HF41F/24-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C2, Size : 70.9 x 88.3 x 6.3mm / 2.798"x3.48"x 0.25"(H*L*W).

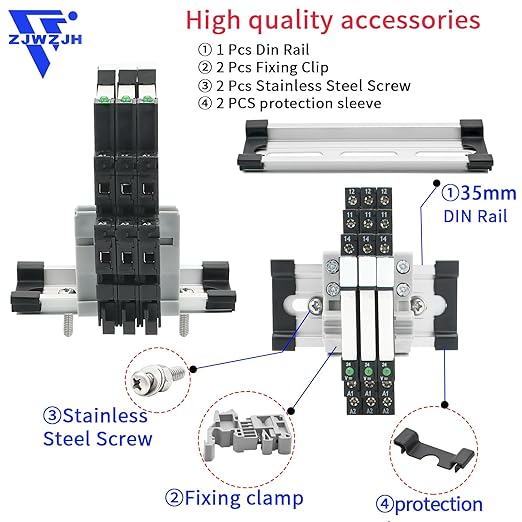

- 【Package】Package Content : 3× Power Relay , 3× Socket Base, 1x 35mm DIN Rail Slotted Aluminum , 2×Screw.Ambient temperature: -40℃ ~ 70℃.
Why Choose the ZJWZJH 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light
The ZJWZJH 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light offers 【certifications】 power relay through ul and vde certification, and 【electromechanical relays】relay coil voltage: 24v ac/dc , contact. These features make the ZJWZJH 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light a strong option in the Electromechanical Relays category.
Best For
The ZJWZJH 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light is best suited for everyday electromechanical relays needs.
Quick Summary
The ZJWZJH 3Pcs Electromechanical Relay Black Miniature Power Relay 24VDC and 24VAC HF41F/24-ZS 6Amp SPDT with LED Light is a Electromechanical Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Silver Tin Oxide, Silver Nickel. Contact Type: Spdt. Current Rating: 6 Amps. Mounting Type: DIN Rail Mount. Price: $37.75.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Silver Tin Oxide, Silver Nickel |
| Contact Type | Spdt |
| Current Rating | 6 Amps |
| Mounting Type | DIN Rail Mount |
