Product Overview

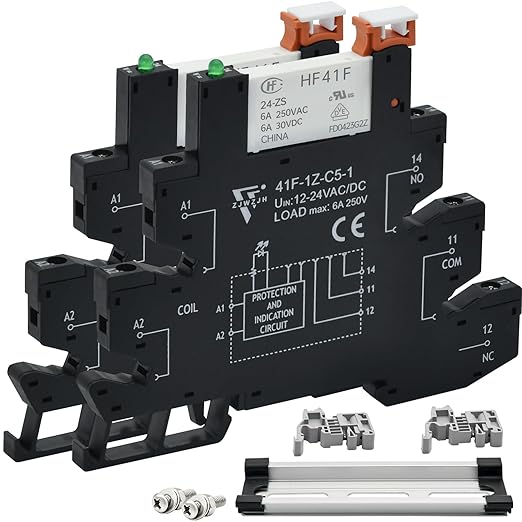

The ZJWZJH 2Pcs Miniature Power Relay Black DC 24V HF41F/24-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator with Socket Base 41F-1Z-C5K with DIN Rail Slotted is a Electromechanical Relays product by ZJWZJH. It features 【certifications】 power relay through ul and vde certification, socket through.
Key Features

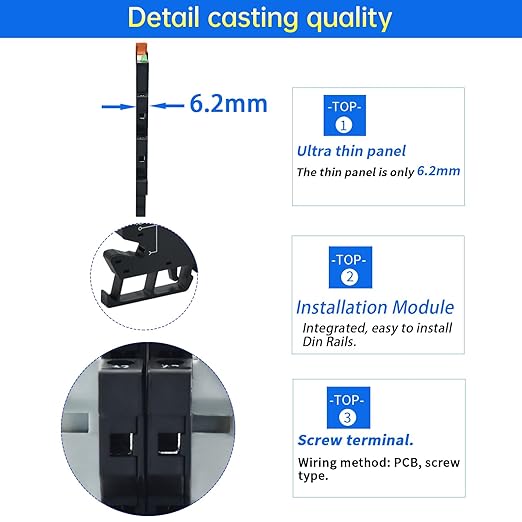

- 【Certifications】 Power Relay through UL and VDE certification, Socket through CE certification.Product Name: Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.
- 【24V AC/DC】Coil Voltage:DC/AC 24V; Contact : SPDT 1 Form C(1NO 1NC); Number of Terminals : 5 Pin; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.

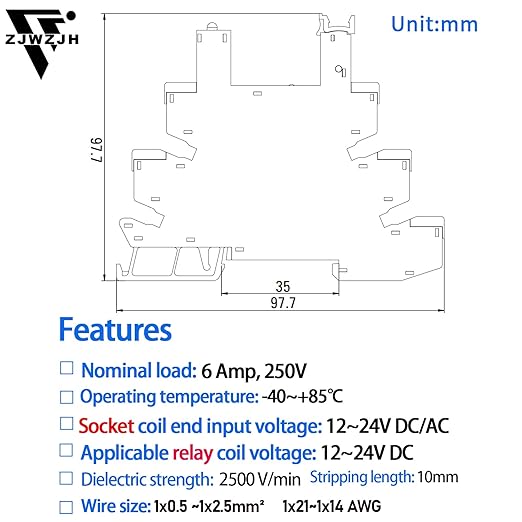

- 【Dimension】Relay Model:HF41F/24-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C5, Size : 97.7x97.7x 6.2mm / 3.85"x3.85"x 0.24"(H*L*W). Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :78mm (3.07").

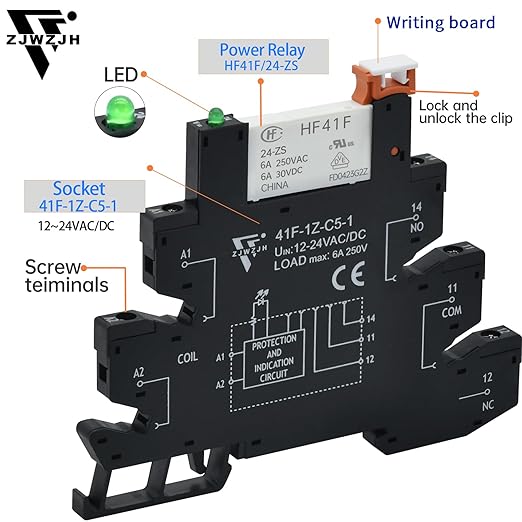

- 【Black Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (12~24)V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.

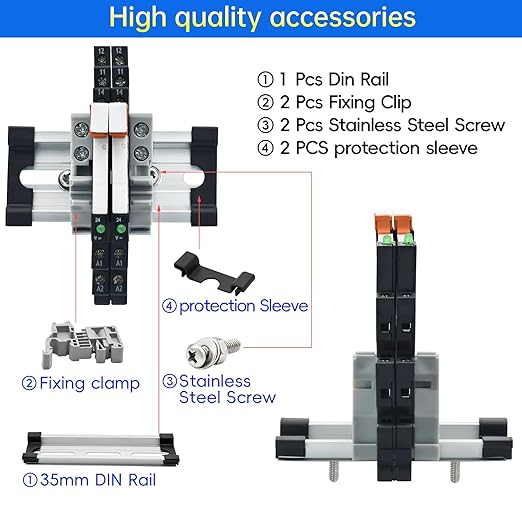

- 【Package】Package Content : 2× Power Relay; 2× Relay Socket Base; 1× DIN Rail;2×Fixing Clip;2×Screw.Ambient temperature: -40℃ ~ 70℃.
Why Choose the ZJWZJH 2Pcs Miniature Power Relay Black DC 24V HF41F/24-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator with Socket Base 41F-1Z-C5K with DIN Rail Slotted
The ZJWZJH 2Pcs Miniature Power Relay Black DC 24V HF41F/24-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator with Socket Base 41F-1Z-C5K with DIN Rail Slotted offers 【certifications】 power relay through ul and vde certification, and 【24v ac/dc】coil voltage:dc/ac 24v; contact : spdt 1. These features make the ZJWZJH 2Pcs Miniature Power Relay Black DC 24V HF41F/24-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator with Socket Base 41F-1Z-C5K with DIN Rail Slotted a strong option in the Electromechanical Relays category.
Best For
The ZJWZJH 2Pcs Miniature Power Relay Black DC 24V HF41F/24-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator with Socket Base 41F-1Z-C5K with DIN Rail Slotted is best suited for everyday electromechanical relays needs.
Quick Summary
The ZJWZJH 2Pcs Miniature Power Relay Black DC 24V HF41F/24-ZS 5 Pin 1NO 1NC 6A SPDT with LED Indicator with Socket Base 41F-1Z-C5K with DIN Rail Slotted is a Electromechanical Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Silver. Contact Type: Normally Open, Closed. Current Rating: 6 Amps. Mounting Type: DIN Rail Mount. Price: $23.97.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Silver |
| Contact Type | Normally Open, Closed |
| Current Rating | 6 Amps |
| Mounting Type | DIN Rail Mount |
