Product Overview
The ZJWZJH 24V AC Relay Electromagnetic Relay 8 Amp 8Pin DPDT 2NO 2NC with Test Button is a Electromechanical Relays product by ZJWZJH. It features our miniature pcb power ac 24v relay through ul certification.
Key Features
- Our Miniature PCB Power AC 24V Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state. Relays are designed with precision and attention to detail, ensuring high-quality performance in various applications.
- Relay Name:ZJ157FT-2PL; Rated carry current: 8 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.Contact: 8 Pins, 2NO 2NC DPDT 2 Poles.

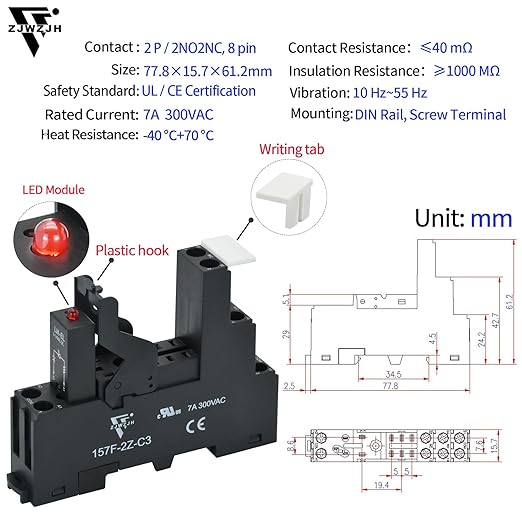

- Socket: UL/CE/CSA Certification, with LED lamp sockets installed on the socket for safer illumination during use.

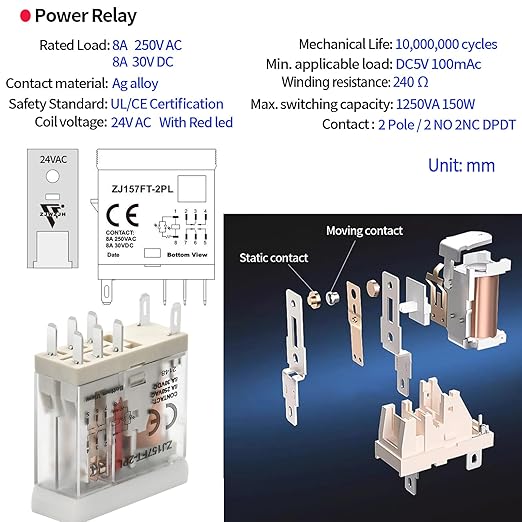

- Package Content : 1 x Power Relay(AC24V) ,1 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times

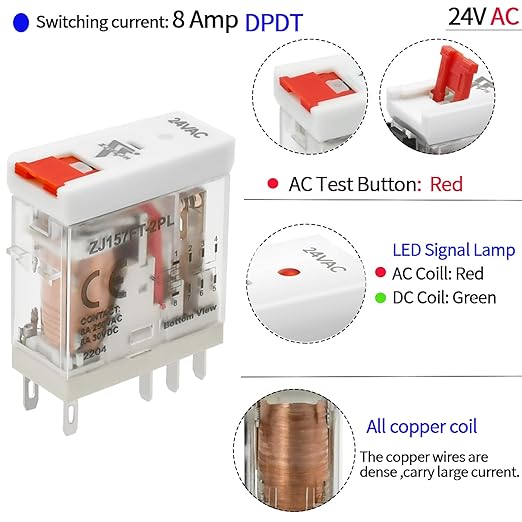

- Both relays and sockets have LED signal lights, with red indicating AC and green indicating DC. LED lights can detect AC or DC coils and determine whether the coils are energized.
Why Choose the ZJWZJH 24V AC Relay Electromagnetic Relay 8 Amp 8Pin DPDT 2NO 2NC with Test Button
The ZJWZJH 24V AC Relay Electromagnetic Relay 8 Amp 8Pin DPDT 2NO 2NC with Test Button offers our miniature pcb power ac 24v relay through and relay name:zj157ft-2pl; rated carry current: 8 amps;rated voltage:. These features make the ZJWZJH 24V AC Relay Electromagnetic Relay 8 Amp 8Pin DPDT 2NO 2NC with Test Button a strong option in the Electromechanical Relays category.
Best For
The ZJWZJH 24V AC Relay Electromagnetic Relay 8 Amp 8Pin DPDT 2NO 2NC with Test Button is best suited for everyday electromechanical relays needs.
Quick Summary
The ZJWZJH 24V AC Relay Electromagnetic Relay 8 Amp 8Pin DPDT 2NO 2NC with Test Button is a Electromechanical Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Silver Alloy. Contact Type: Dpdt, 2 Normally Open + 2 Normally Close. Current Rating: 8 Amps. Mounting Type: DIN Rail Mount. Price: $16.48.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Silver Alloy |
| Contact Type | Dpdt, 2 Normally Open + 2 Normally Close |
| Current Rating | 8 Amps |
| Mounting Type | DIN Rail Mount |
