Product Overview

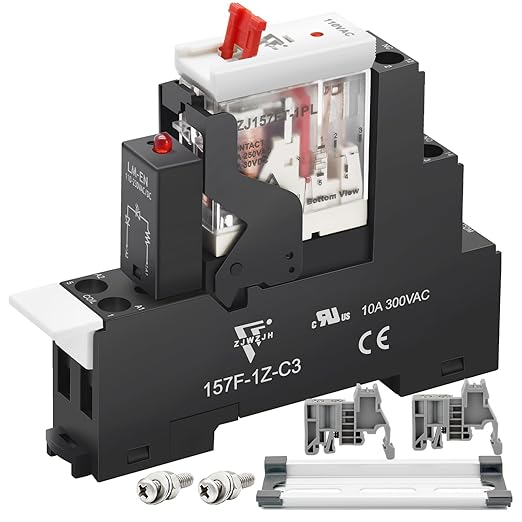

The ZJWZJH 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V SPDT 1NO 1NC Socket Base with Indicator Light is a Electromechanical Relays product by ZJWZJH. It features our miniature pcb power relay through ul certification and ce.
Key Features
- Our Miniature PCB Power Relay through UL certification and CE certification.Relay's point dynamic test key can be used to manually change the contact state.

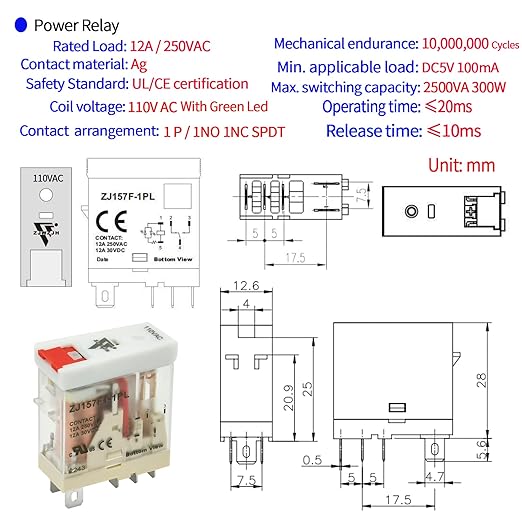

- Relay Name:ZJ157FT-1PL; Rated carry current:12 Amps;Rated voltage: 250VAC/30VDC; Termination: Screw terminal; Mounting DIN rail.Contact:1NO1NC DPDT 1 Poles.

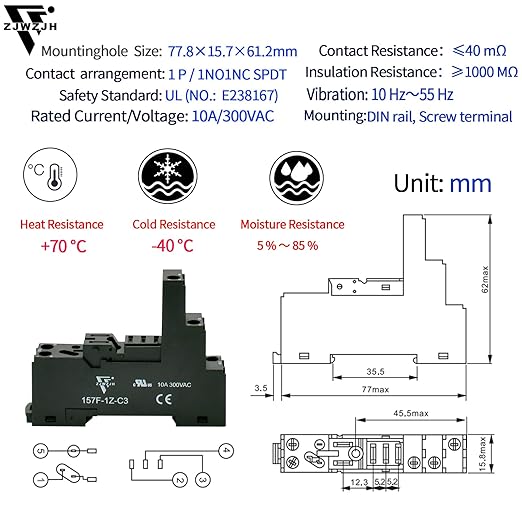

- Socket Safety Standard:UL (NO.: E238167) ;Socket Name :157F-2Z-C3; Outline Size: 77.8×15.7×61.2mm(3.06*0.62*2.41");Number of plug–in and draw–out ≥500 times .

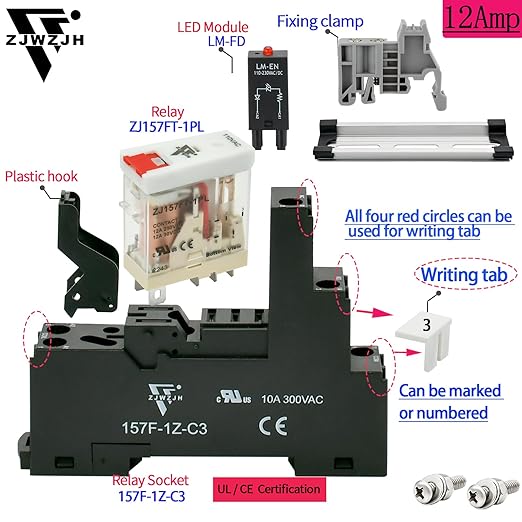

- Package Content : 1 x Power Relay ,1 x Socket, 2 x Fixing clamp , 1 x DIN Rail, 2 x Screws.Mechanical endurance:10,000,000 Times;Electrical endurance:100,000 Times

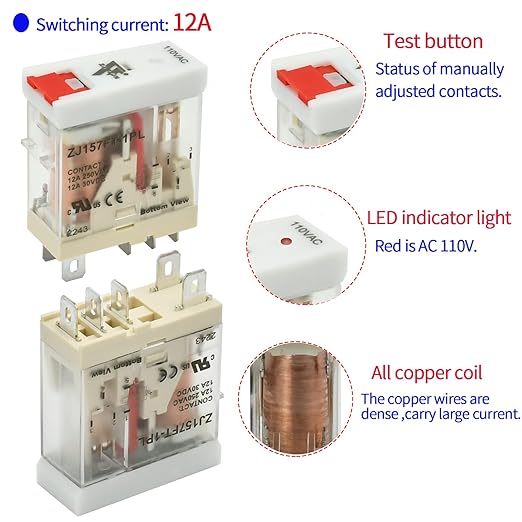

- The LED indicator on the relay is red for AC and green for DC. The relay is made of high-quality materials ,It is high sensitivity, strong conductivity and high current carrying capacity,
Why Choose the ZJWZJH 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V SPDT 1NO 1NC Socket Base with Indicator Light
The ZJWZJH 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V SPDT 1NO 1NC Socket Base with Indicator Light offers our miniature pcb power relay through ul certification and relay name:zj157ft-1pl; rated carry current:12 amps;rated voltage: 250vac/30vdc;. These features make the ZJWZJH 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V SPDT 1NO 1NC Socket Base with Indicator Light a strong option in the Electromechanical Relays category.
Best For
The ZJWZJH 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V SPDT 1NO 1NC Socket Base with Indicator Light is best suited for everyday electromechanical relays needs.
Quick Summary
The ZJWZJH 12 Amp Power Relay Switch Electromagnetic with Test Button 110V 120V SPDT 1NO 1NC Socket Base with Indicator Light is a Electromechanical Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Silver Alloy. Contact Type: Dpdt, 2 Normally Closed +2 Normally Open. Current Rating: 12 Amps. Mounting Type: DIN Rail Mount. Price: $16.48.
Product Specifications
| Specification | Details |
|---|---|
| Connector Type | Screw |
| Contact Material | Silver Alloy |
| Contact Type | Dpdt, 2 Normally Closed +2 Normally Open |
| Current Rating | 12 Amps |
| Mounting Type | DIN Rail Mount |
