10Pcs Miniature Relay 24V DC, 24V AC 6Amp SPDT

Product Overview

The ZJWZJH 10Pcs Miniature Relay 24V DC is a Electromechanical Relays product by ZJWZJH. It features 【certifications】 power relay through ul and vde certification, socket through.

Key Features

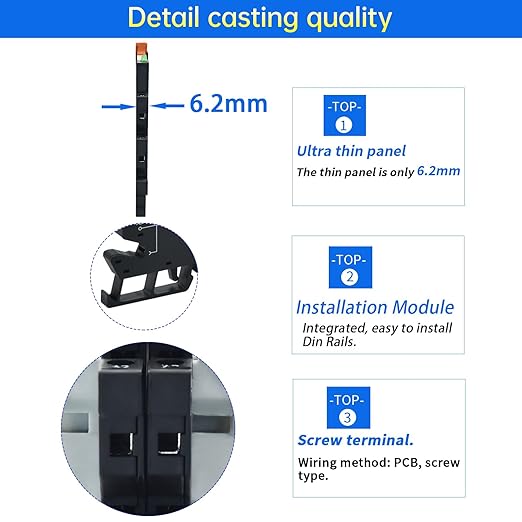

• 【Certifications】 Power Relay through UL and VDE certification, Socket through CE certification.Product Name: Subminiature Power Relay，The thickness is only 0.24 "/6.2mm.
• 【24V AC/DC】Coil Voltage:DC/AC 24V; Contact : SPDT 1 Form C(1NO 1NC); Number of Terminals : 5 Pin; Contact Rating: 6A 250VAC / 30VDC, Construction: Plastic seaied.

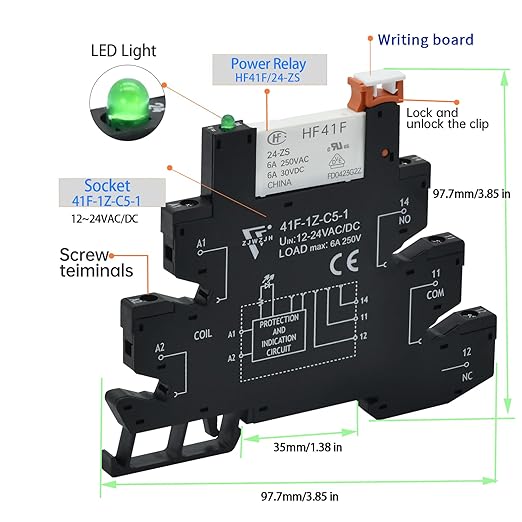

• 【Dimension】Relay Model:HF41F/24-ZS , Relay Slim size (width 5mm), Outline size:28×5×15mm; Socket Model: 41F-1Z-C5, Size : 97.7x97.7x 6.2mm / 3.85"x3.85"x 0.24"(H*L*W). Mount Rail Type : 35mm (1.38") DIN Rail; DIN Rail length :78mm (3.07").

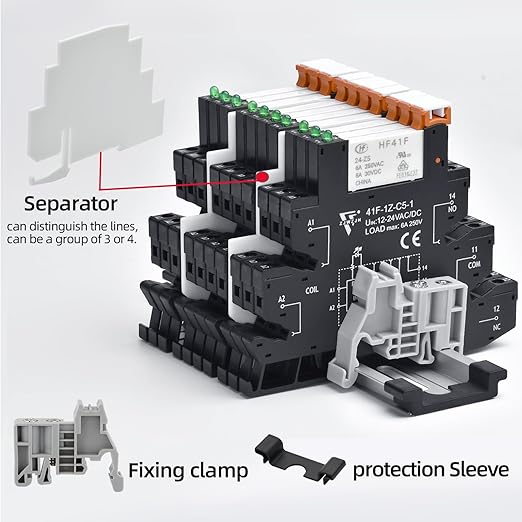

• 【Black Socket】Socket: Screw terminal, DIN rail mounting, with finger protection device.Relay Input voltage: (12~24)V AC/DC; Plug-and-play design allows the relay and base to be easily separated for convenient replacement,enhancing user-friendliness.

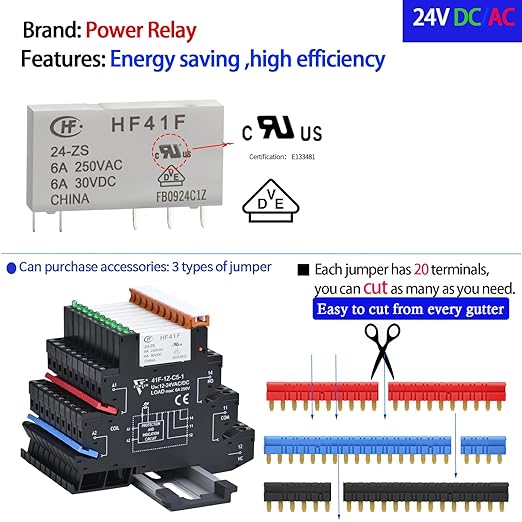

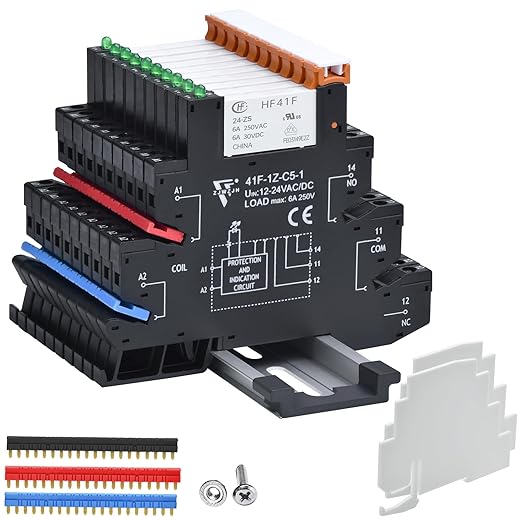

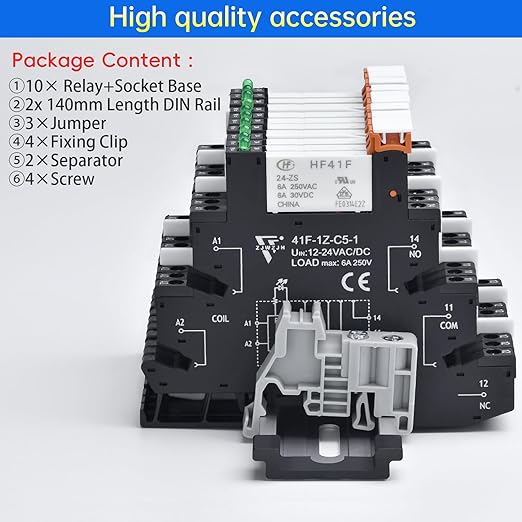

• 【Package】Package Content : 10× Power Relay; 10× Relay Socket Base; 2x 140mm Length DIN Rail;3×Jumper;4×Fixing Clip;2×Separator; 4×Screw.Ambient temperature: -40℃ ~ 70℃.

Why Choose the ZJWZJH 10Pcs Miniature Relay 24V DC

The ZJWZJH 10Pcs Miniature Relay 24V DC offers 【certifications】 power relay through ul and vde certification, and 【24v ac/dc】coil voltage:dc/ac 24v; contact : spdt 1. These features make the ZJWZJH 10Pcs Miniature Relay 24V DC a strong option in the Electromechanical Relays category.

Best For

The ZJWZJH 10Pcs Miniature Relay 24V DC is best suited for everyday electromechanical relays needs.

Quick Summary

The ZJWZJH 10Pcs Miniature Relay 24V DC is a Electromechanical Relays product by ZJWZJH. Connector Type: Screw. Contact Material: Silver Alloy. Contact Type: Normally Open. Current Rating: 6 Amps. Mounting Type: DIN Rail Mount. Price: $82.48.
